ElectricalSpeakers

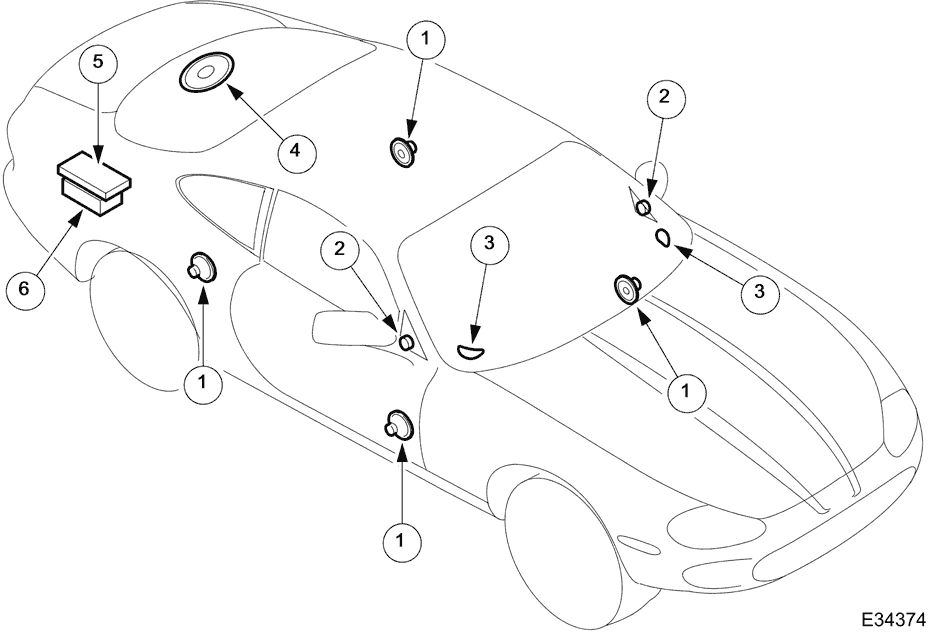

Speakers
- 1 Base System - 152 mm Triple Cone
- 1 Base System - 152 mm Triple cone
- 3 Premium System - Mirror Panel Tweeter
- 4 Premium System - 200 mm Sub Woofer
- 5 Premium System - Amplifier
- 6 Premium System - CD Autochanger
Both coupe and convertible with the standard entertainment system use a common speaker configuration.
Vehicles with the premium entertainment system have a different configuration for each model.

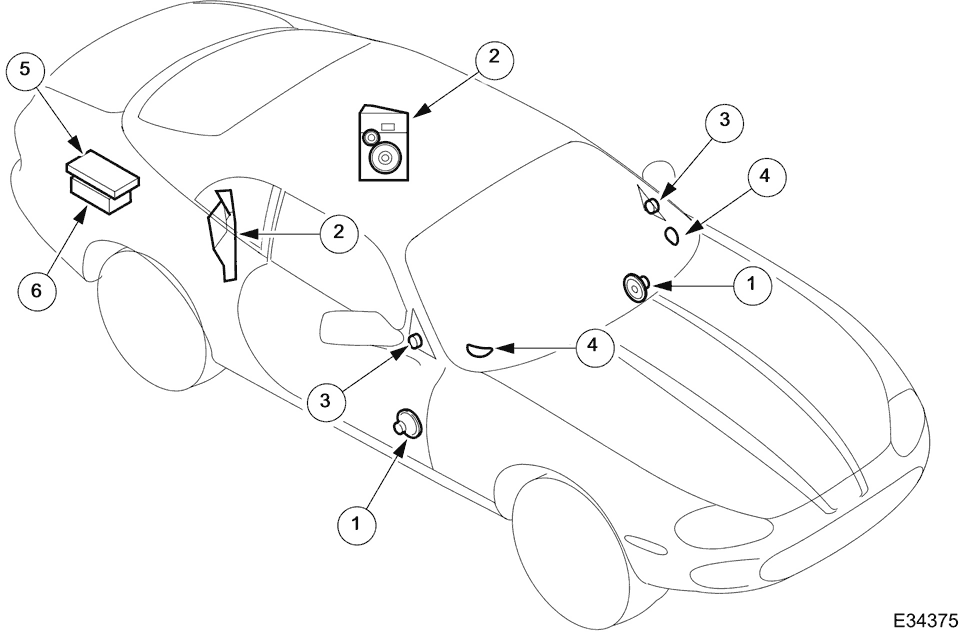

Speaker Location - Convertible
- 1 Base System - 152 mm Triple Cone
- 2 Base System - 152 mm Triple Cone
- 1 Premium System - 152 mm Mid / Bass
- 2 Premium System - Enclosure with 152 mm Long Throw Sub-Woofer and 64 mm Mid Range
- 3 Premium System - Mirror Panel Tweeter
- 4 Premium System - Fascia 64 mm Mid Range
- 5 Premium System - Amplifier
- 6 Premium System - CD Autochanger
