Commander 4WD V6-3.7L (2009)

Page 1
background image

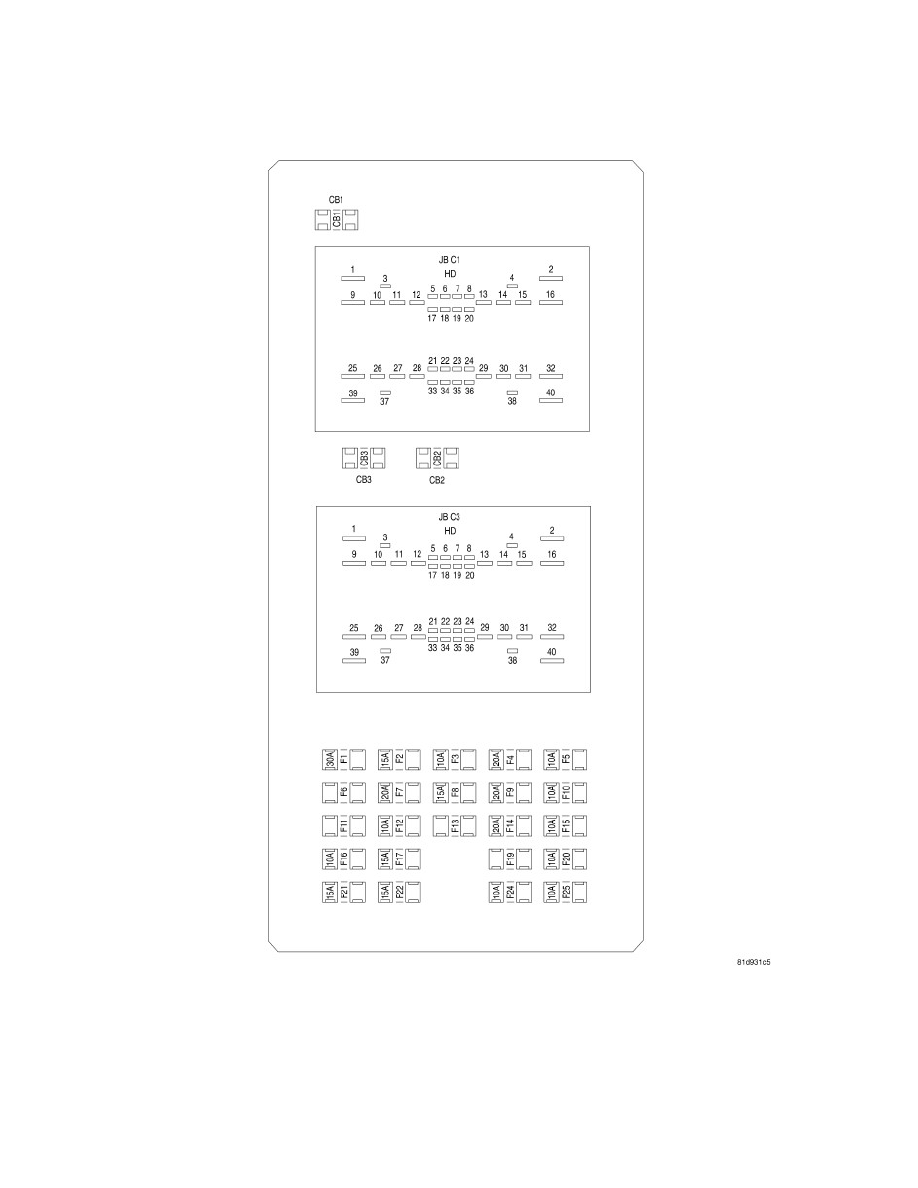

Fuse: Locations

SPECIFICATION - Fuse Locations and Types

Interior Fuses

The fuse panel is on the lower instrument panel just to the left of the steering column.
