Dome Lamp: Locations

Component ID:

177

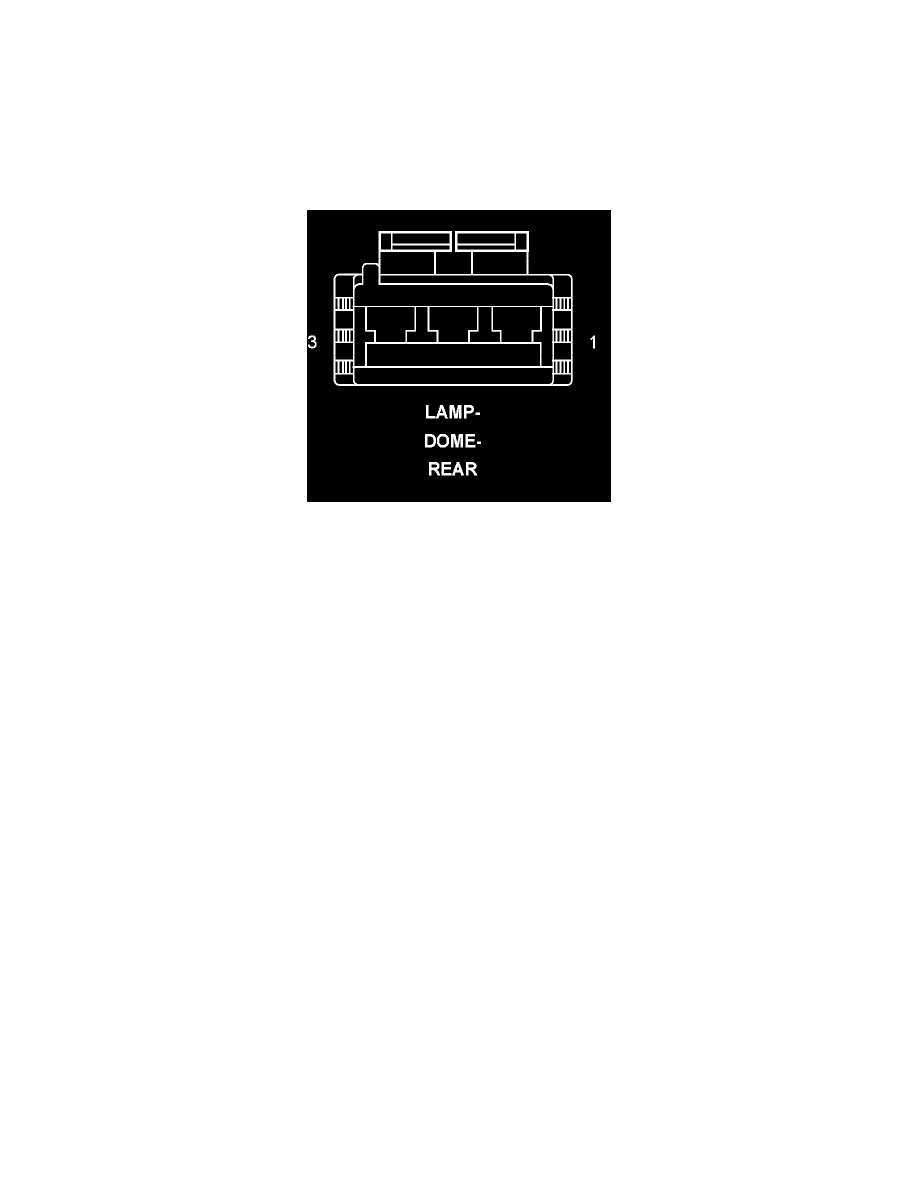

Component :

LAMP-DOME-REAR

Connector:

Name :

LAMP-DOME-REAR

Color :
# of pins :

3

Pin  Circuit

Description

  1

M22 20YL/OR

COURTESY LAMPS DRIVER

  2

M28 20YL/TN

GLOVE BOX/MAP LAMP DRIVER

  3

A931 20RD

FUSED B(+)

Component Location - 51
