Compass 2WD L4-2.0L VIN 0 (2007)
Control Arm: Service and Repair
Front Suspension
Lower Control Arm - Removal
REMOVAL
NOTE: Before proceeding, refer to FRONT SUSPENSION WARNING.

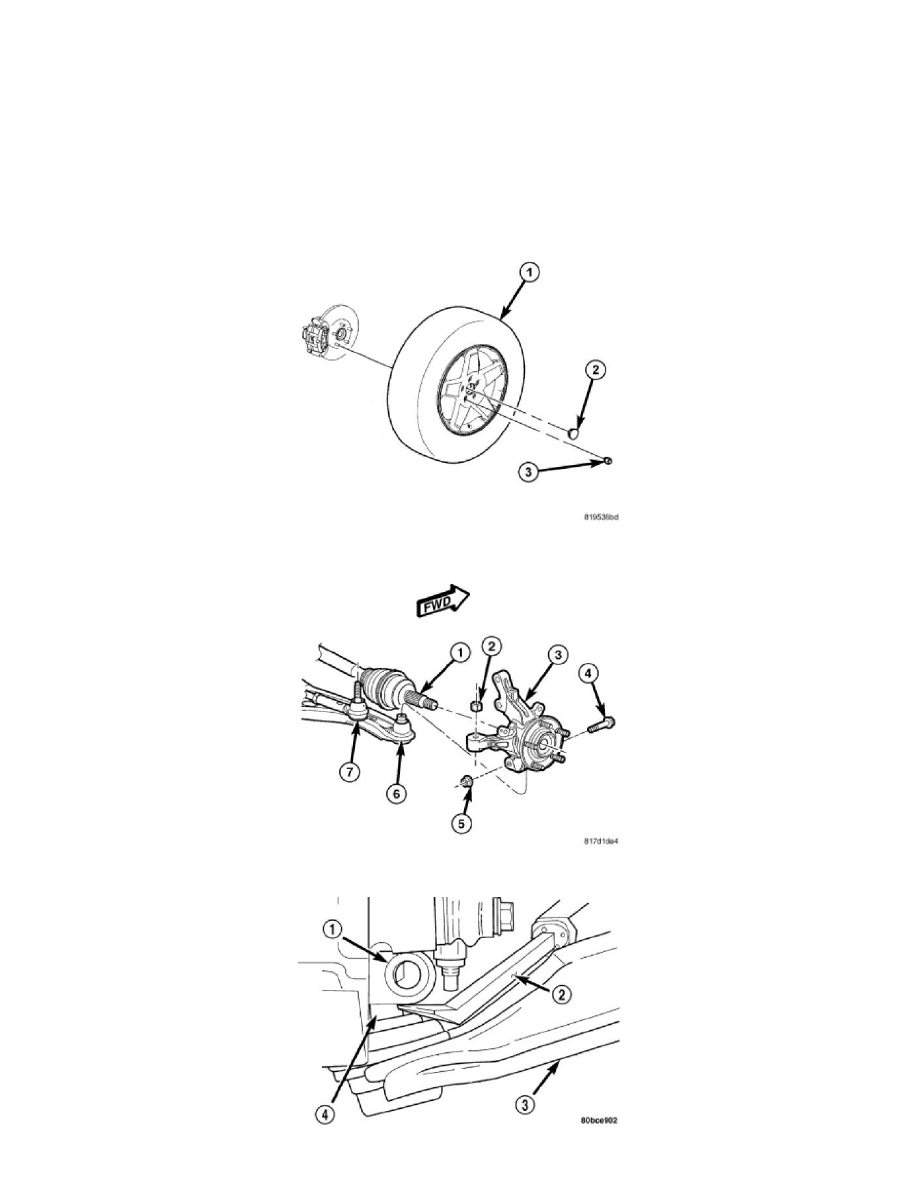

1. Raise and support the vehicle.
2. Remove the wheel mounting nuts (3), then the tire and wheel assembly (1).
3. Remove the nut (5) and pinch bolt (4) clamping the ball joint (6) stud to the knuckle (3).
