Compass 2WD L4-2.0L VIN 0 (2007)

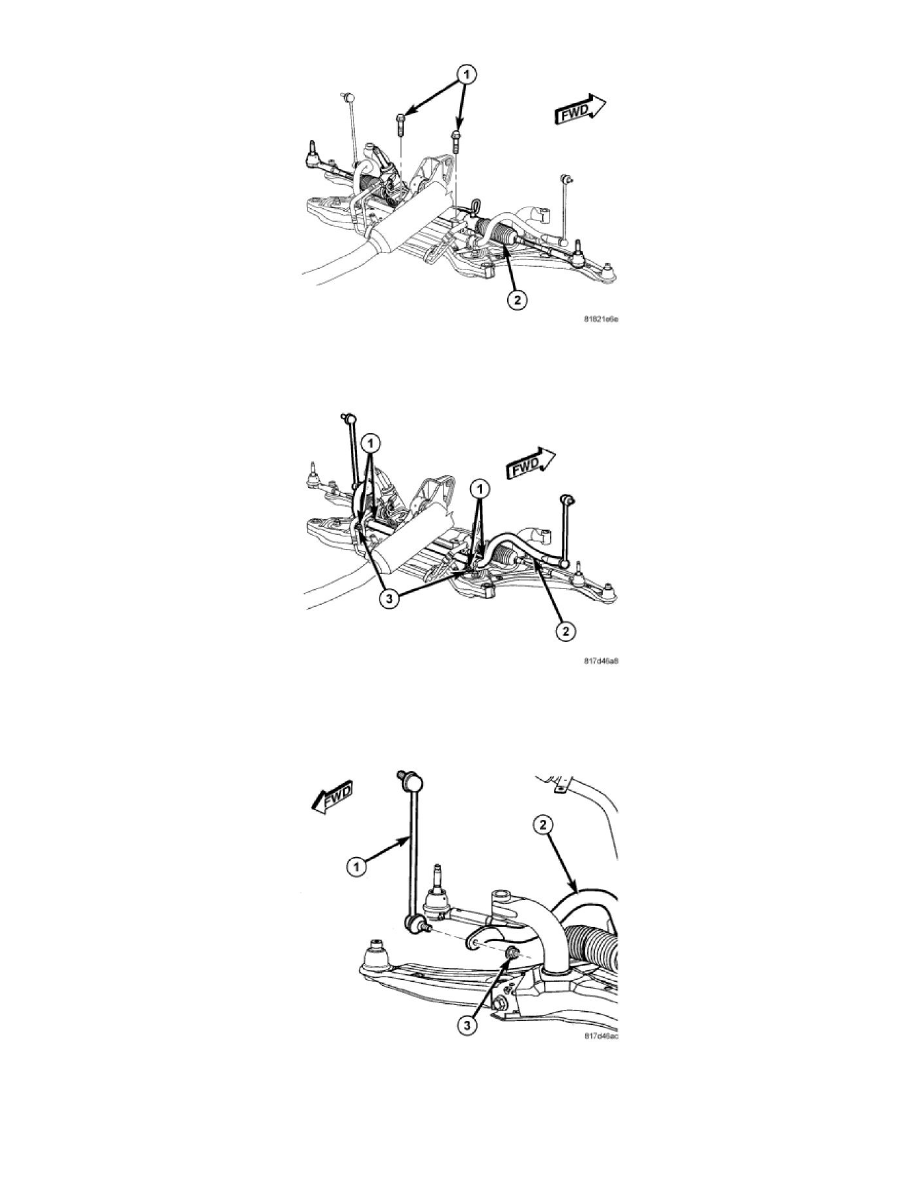

5. Remove the bungee cord or other supporting the steering gear (2).
6. Install the two bolts (1) securing the steering gear (2) to the crossmember. Tighten the steering gear mounting bolts to 70 Nm (52 ft. lbs.).
7. Install the two cushions (bushings) on the stabilizer bar utilizing the slit cut into the cushion sides.
8. Install the two stabilizer bushing retainers (3) over the cushions.
9. Install the screws (1) securing the stabilizer bushing retainers (3) to the crossmember. Tighten all four stabilizer bar cushion retainer screws to 30
Nm (22 ft. lbs.).
10. Attach the stabilizer bar link (1) at each end of the stabilizer bar (2). At each link, install and tighten the nut (3) while holding the stabilizer bar
link lower stud stationary. Tighten the nuts to 58 Nm (43 ft. lbs.).
