Compass 4WD L4-2.0L (2009)
Alignment: Specifications
Wheel Alignment
WHEEL ALIGNMENT
NOTE: All specifications are given in degrees.
NOTE: All wheel alignments are to be set with the vehicle at curb height. See: Service and Repair/Wheel Alignment Procedures
NOTE: Each of the following tables refers to a vehicle equipped with a specific size OEM tire/wheel (except Export).

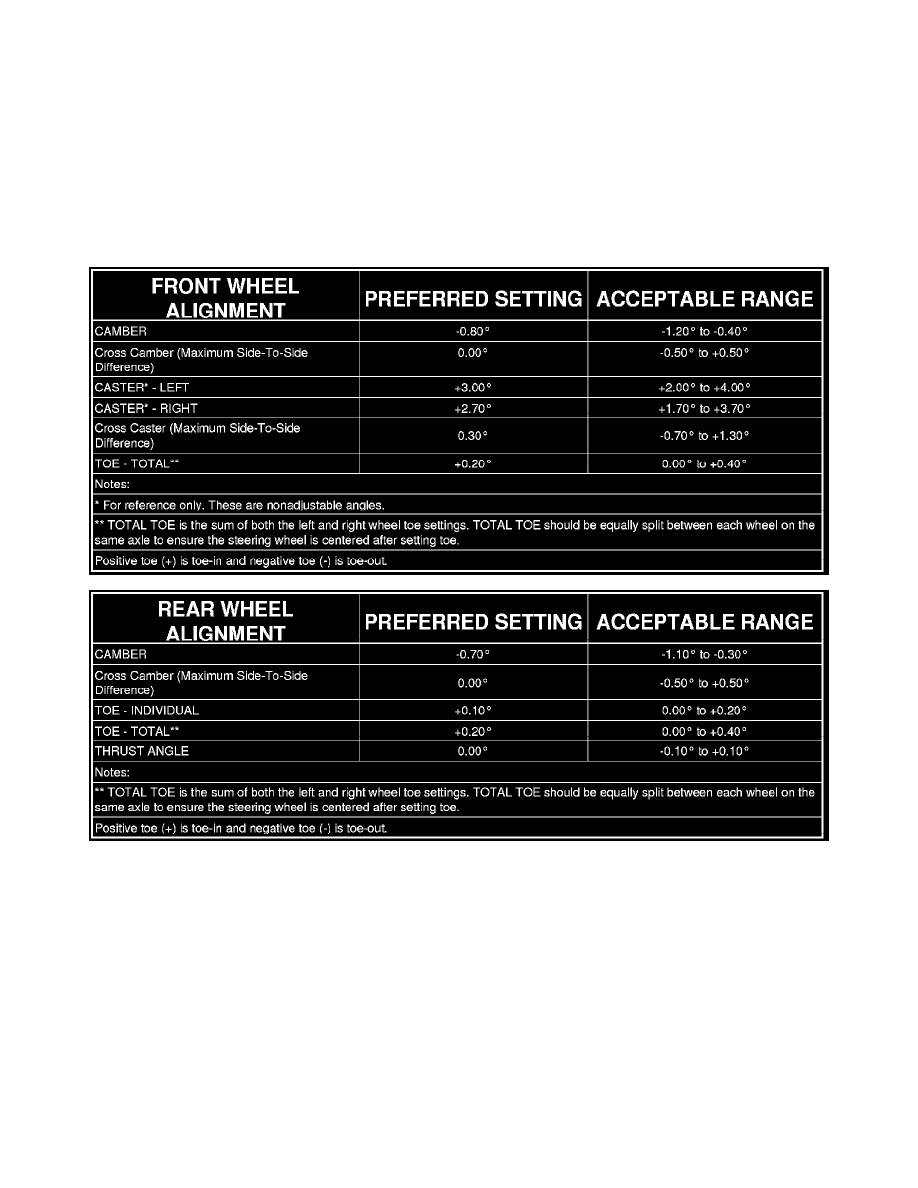

ALL WITH 16 INCH WHEELS
ALL P215/60R17 AND P215/65R17AT with OFF-ROAD GROUP (AWL)
