Drive Belt: Description and Operation
- Make
- Jeep
- Model
- Compass 4WD
- Engine
- L4-2.0L
- Year
- 2009
- Section
- Drive Belt › Description and Operation
MaintenanceDescription and Operation · page 1 of 3
Drive Belt: Description and Operation
GAS ENGINE
ACCESSORY DRIVE BELT - WORLD ENGINE

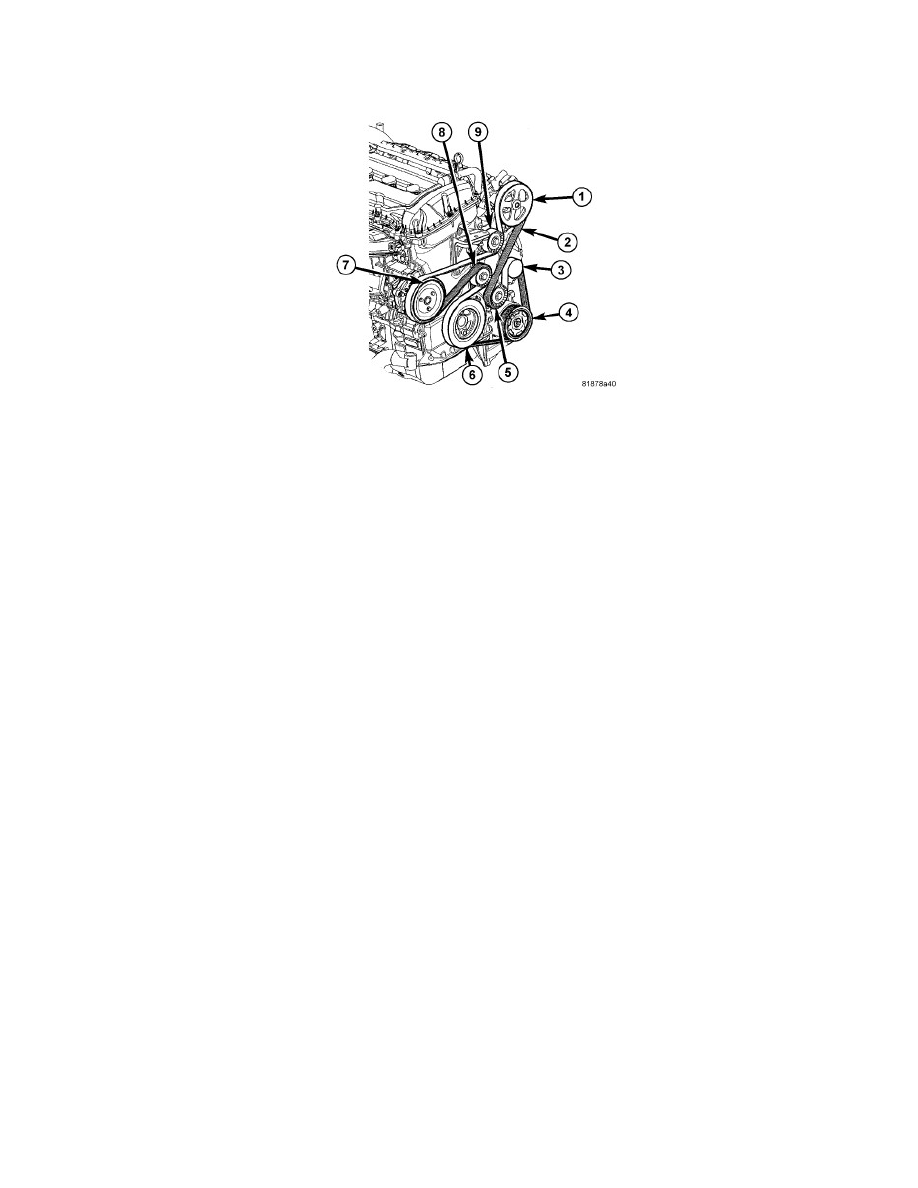

The accessory drive belt (2) is a serpentine type belt that is driven by the crankshaft pulley (6).
The belt drives the A/C compressor, generator (3), power steering pump (1) and water pump (7). Belt tension is maintained by an automatic belt
tensioner (8).
