Grand Cherokee 4WD V6-3.7L (2009)
Vehicle Lifting: Service and Repair
HOISTING
FLOOR JACK

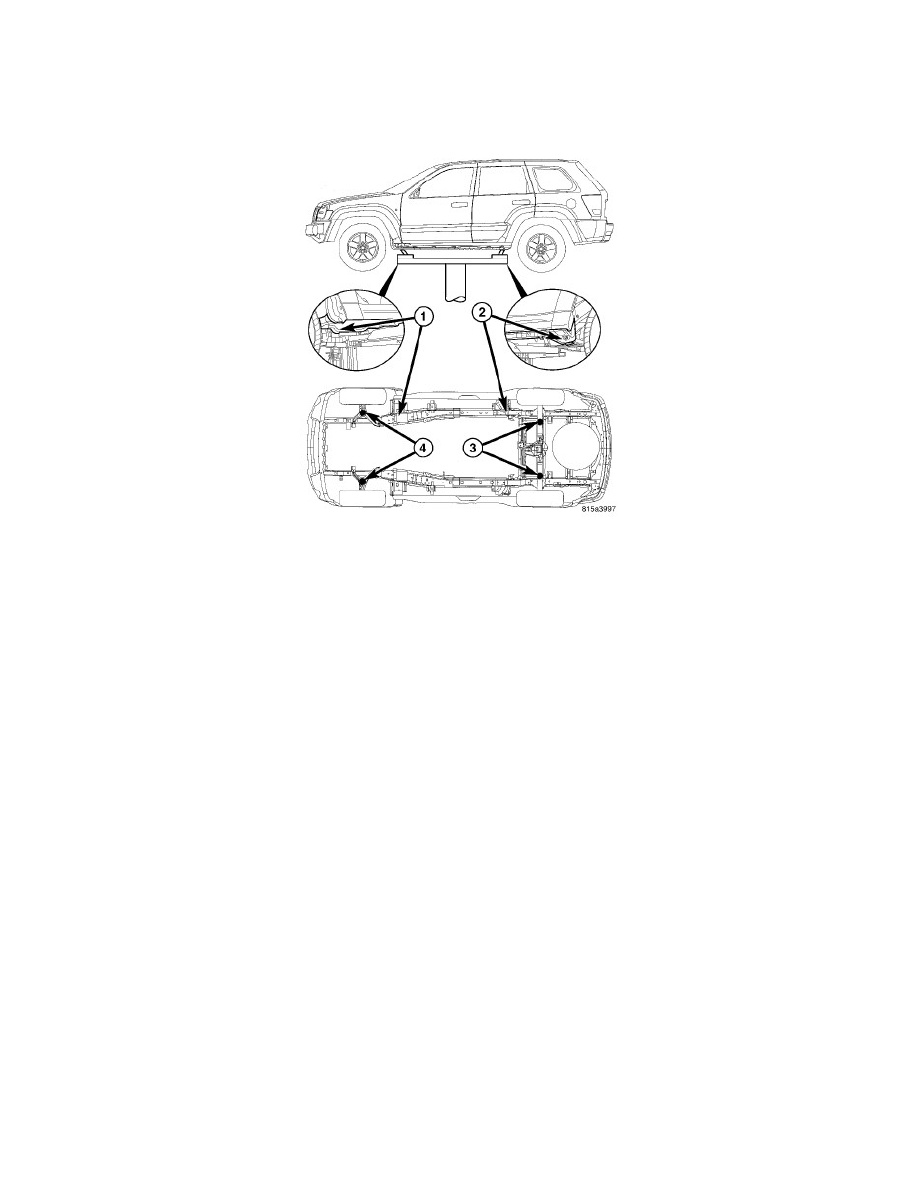

When properly positioned, a floor jack can be used to lift the vehicle (3 and 4). Support the vehicle in the raised position with jack stands at the front and
rear ends of the frame rails (1 and 2).
CAUTION: Do not attempt to lift a vehicle with a floor jack positioned under:
-
Aluminum differential.
-
A body side sill.
-
A steering linkage component.
-
A drive shaft.
-
The engine or transmission oil pan.
-
The fuel tank.
HOIST
A vehicle can be lifted with:
-
A single-post, frame-contact hoist.
-
A twin-post, chassis hoist.
-
A ramp-type, drive-on hoist.
NOTE: When a frame-contact type hoist is used, verify that the lifting pads are positioned properly (1 and 2).
WARNING: The hoisting and jack lifting points provided are for a complete vehicle. When a chassis or drivetrain component is removed from
a vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting
device when these conditions exist.
