Liberty 2WD L4-2.4L VIN 1 (2005)

  • Steering and Suspension
  • Alignment
  • System Information
  • Specifications

Page 1
background image

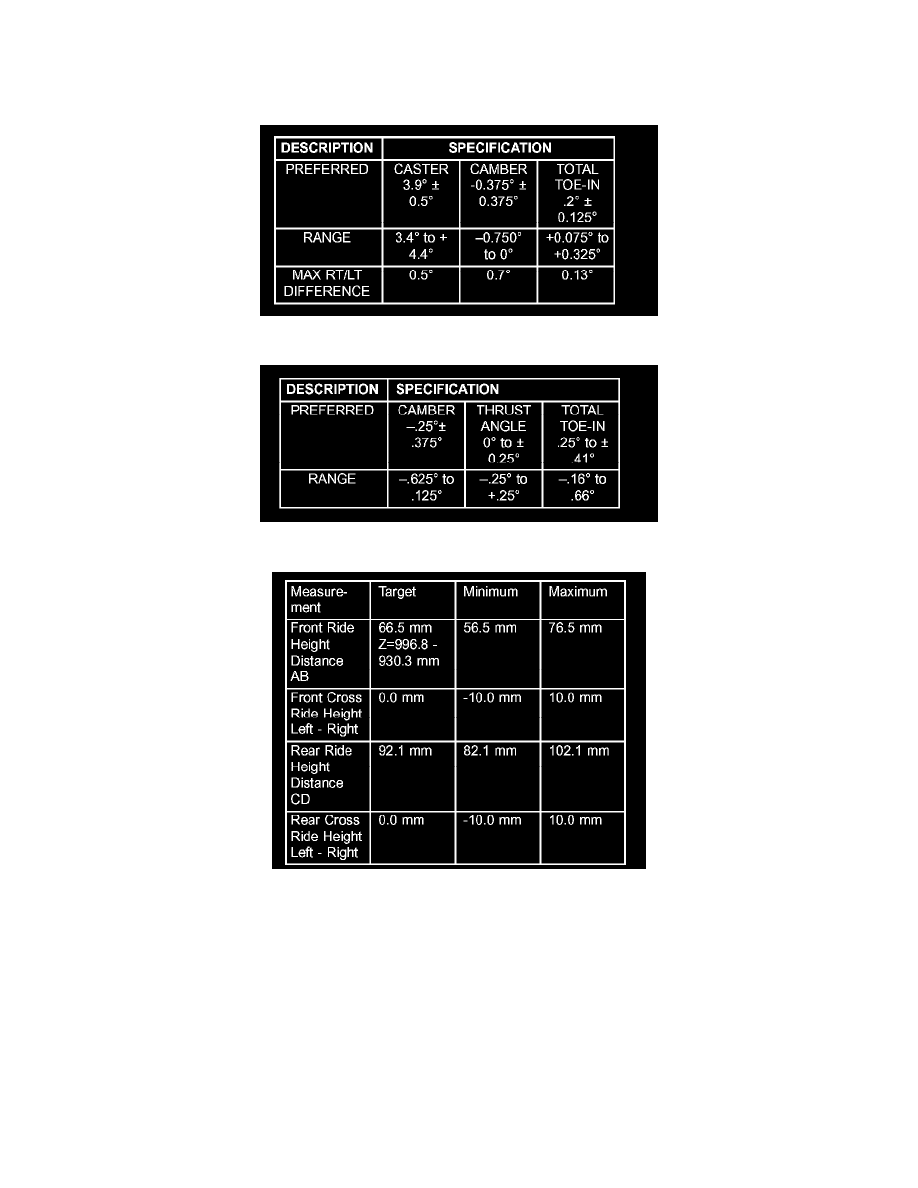

Alignment: Specifications

ALIGNMENT

NOTE:  Specifications are in degrees.

FRONT

REAR

RIDE HEIGHT
