Liberty 2WD L4-2.4L VIN 1 (2005)
Power Steering Line/Hose: Service and Repair
Hose - Pressure
PRESSURE HOSE
REMOVAL
1. Siphon the power steering fluid from the reservoir.
2. Remove the radiator crossmember.
3. Remove the fan.
4. Remove the fan shroud.
5. Remove the serpentine belt.

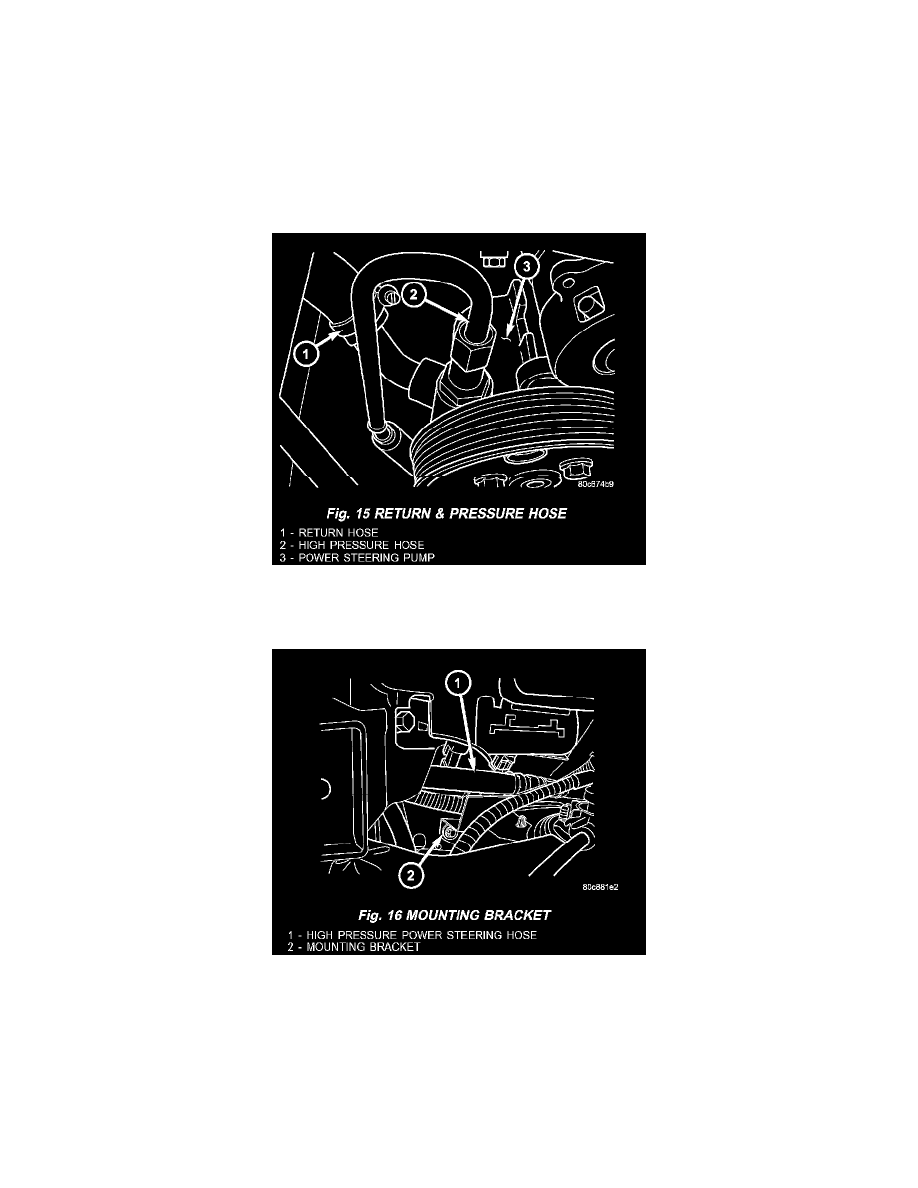

6. Remove the pressure hose (2) at the pump (3) (Fig. 15).
7. Disconnect the pressure switch electrical connector from the pressure hose 2.4L only.
8. Remove the pressure hose from the gear.
9. Remove the pressure hose (1) mounting bracket bolts (2) from behind the headlamp assembly. (Fig. 16)
10. Remove the pressure hose (1) from the vehicle and transfer power steering pressure switch if necessary.
INSTALLATION
