Ignition Coil: Diagrams
Component ID:
53

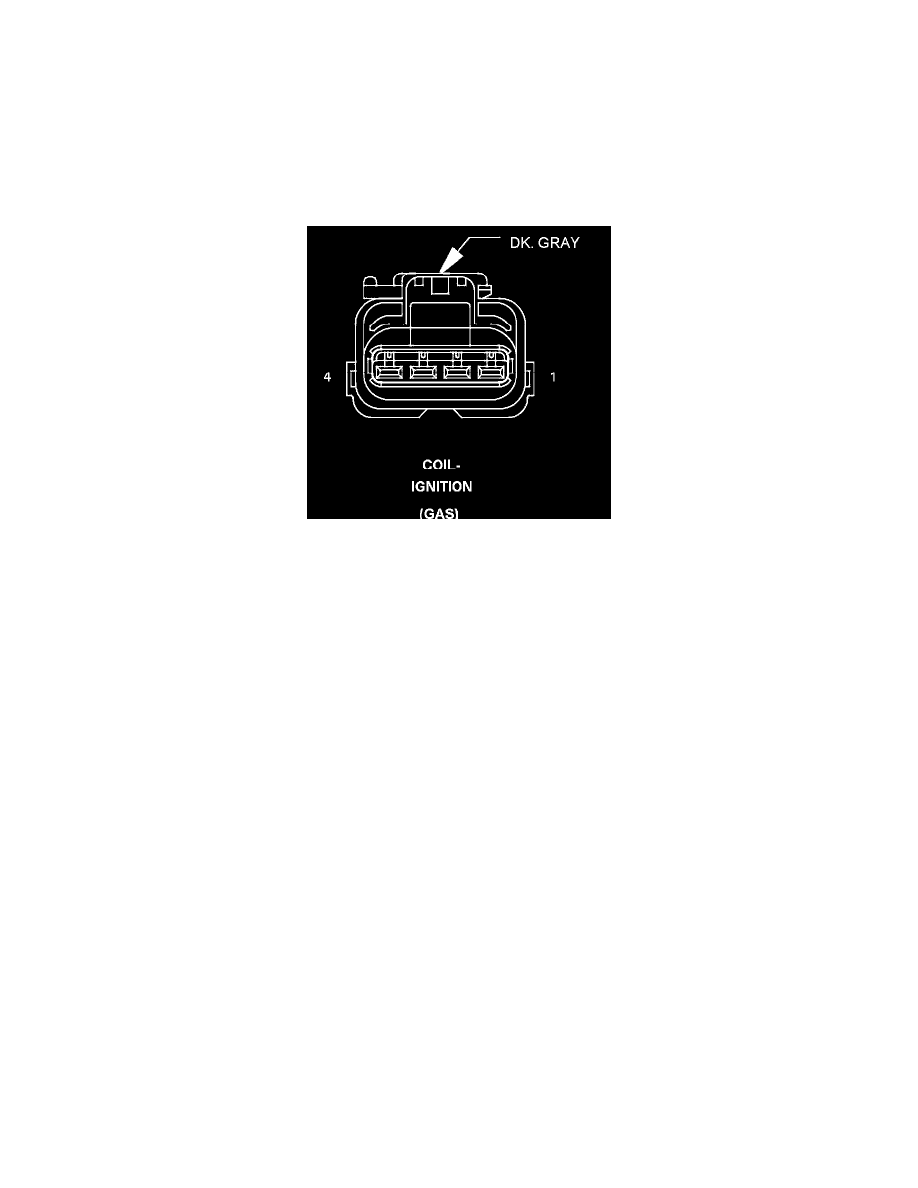

Component :
COIL-IGNITION
Connector:
Name :
COIL-IGNITION
Color :
DK. GRAY
# of pins :
4
Qualifier :
(GAS)
Pin
Circuit
Description
1
K18 16DB/OR
COIL 3 CONTROL
2
F342 14BR/WT
FUSED ASD RELAY OUTPUT
3
K19 16DB/DG
COIL 1 CONTROL
4
K17 16DB/TN
COIL 2 CONTROL
