Wrangler 4WD V6-3.8L (2009)

Page 1
background image

Fuse: Locations

FUSES (TOTALLY INTEGRATED POWER MODULE) - NAFTA, CHINA, MIDDLE EAST

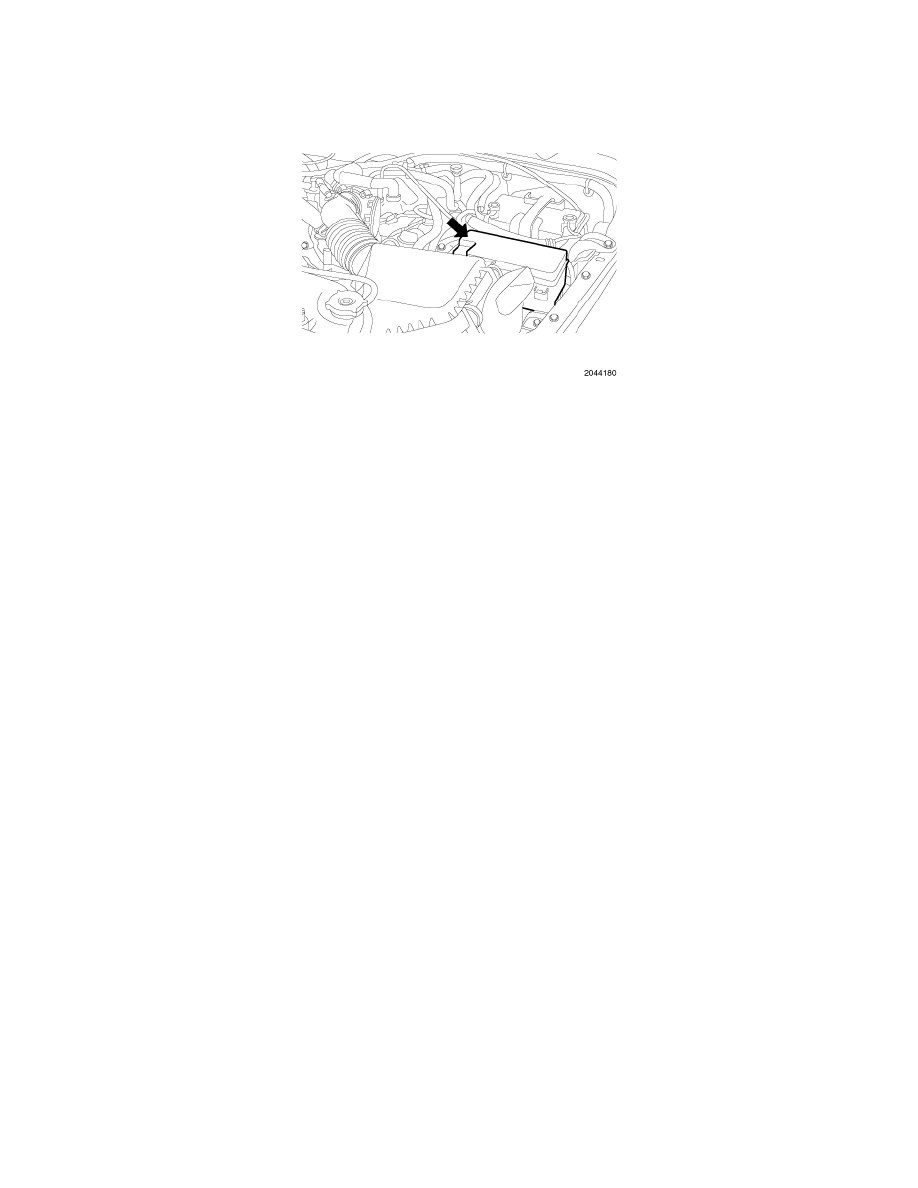

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery. This center contains cartridge fuses, mini fuses and
relays. A label that identifies each component is printed on the inside of the cover.
