Wiper Switch: Diagrams

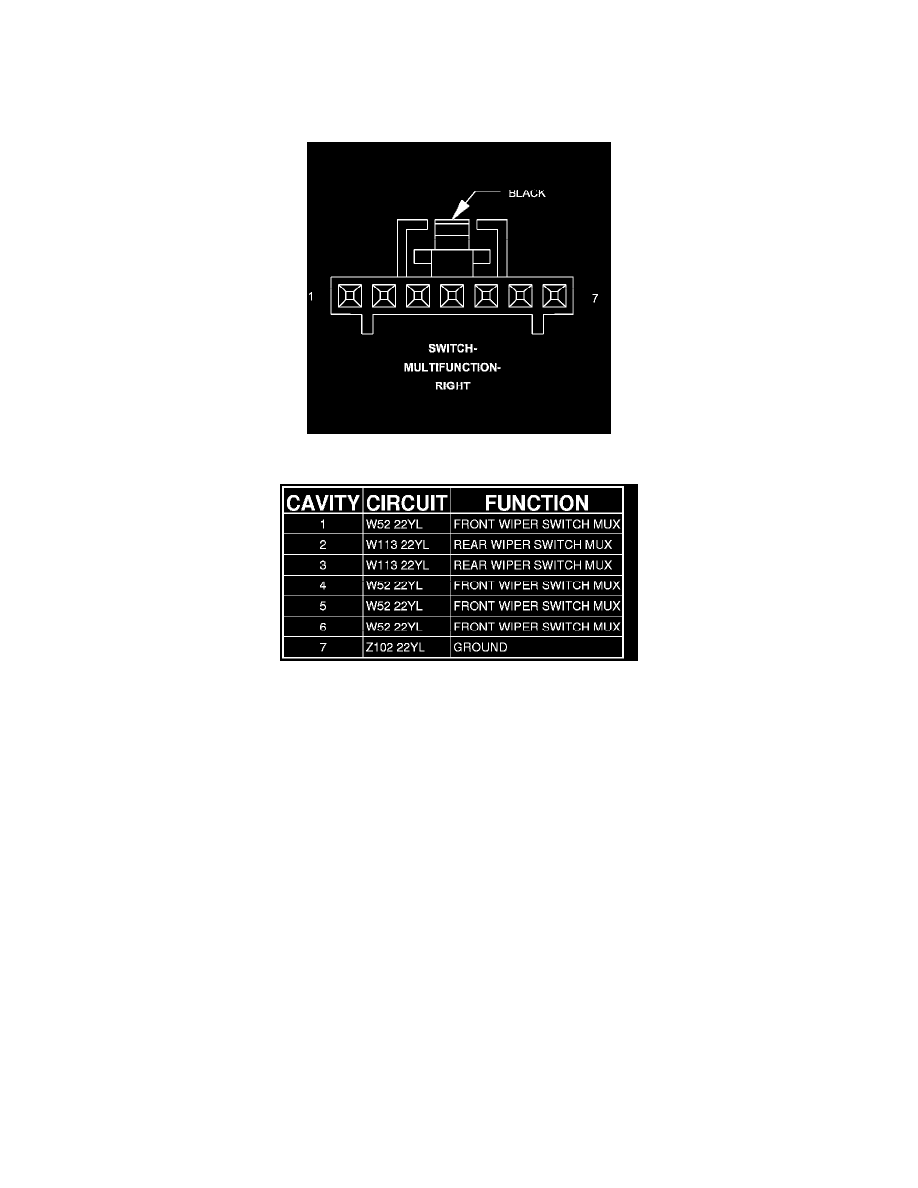

Connector - (STEERING WHEEL JUMPER) 7 WAY

SWITCH-MULTIFUNCTION-RIGHT - (STEERING WHEEL JUMPER) 7 WAY
