Optima V6-2.7L (2003)
Drive Belt: Specifications

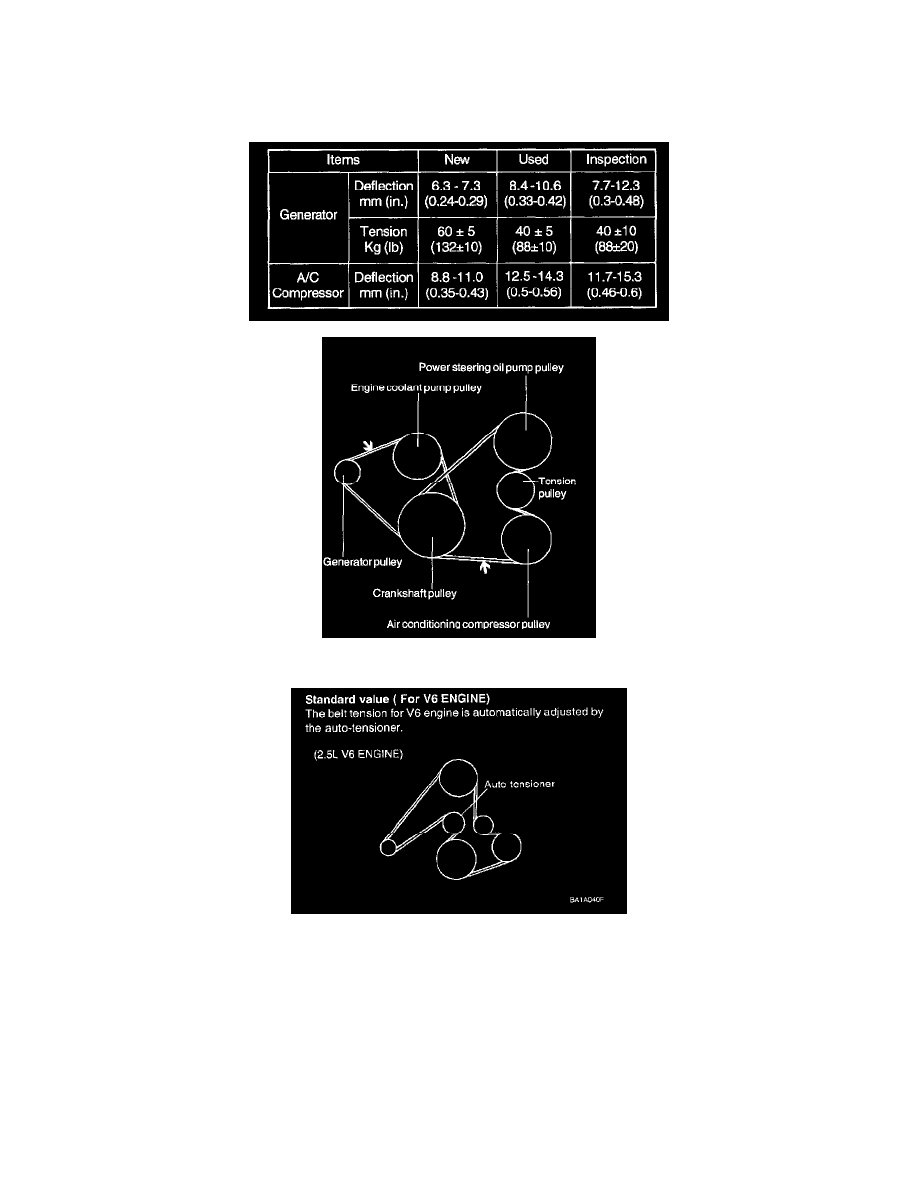

CHECKING BELT TENSION
Apply 100 N (22 lbs.) force to the backside of the belt between the pulleys as shown in the illustration, measure the amount of deflection Measure
tension with a tension gauge.
Standard value (For 2.4L DOHC ENGINE)
Standard value (For V6 ENGINE)
The belt tension for V6 engine is automatically adjusted by the auto-tensioner.
