Optima V6-2.7L (2003)
Refrigerant Oil: Service and Repair

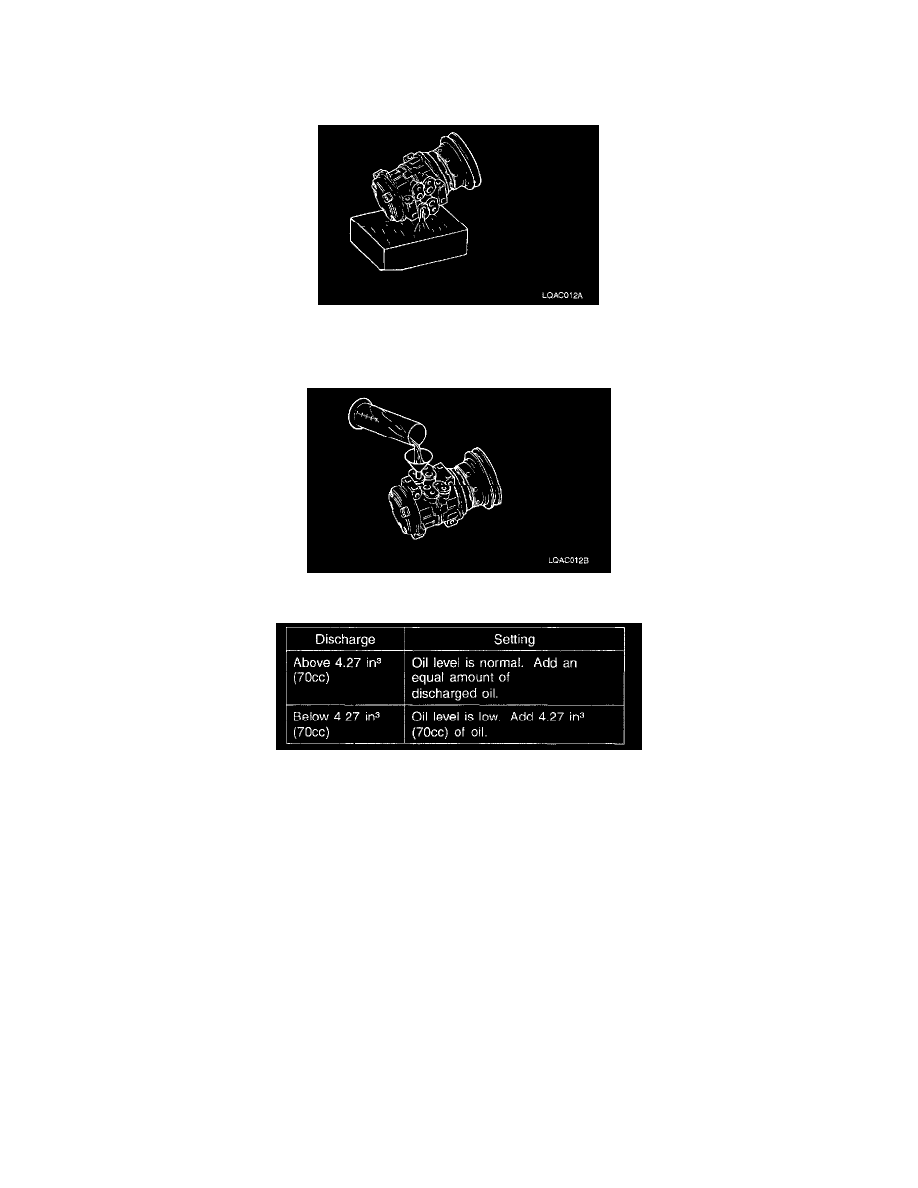

In order to add oil to an operating compressor, check the compressor oil using the following procedure:
1. Stop the engine, discharge the refrigerant, and dismantle the compressor from the vehicle.
2. Pour oil from the system line outlet.
3. Check the volume of the discharged oil. If it is less than 4.27 cu.in (70 cc), it means there is little leak. Perform the leakage test on each system
connection, and repair or replace faulty parts if necessary.
4. Check the oil for contamination and replenish the oil level in the given procedure:
a. When oil is clean
b. If the oil is contaminated with metal fragments or other material, clean the receiver drier after charging the refrigerant.
