Rio Cinco L4-1.6L DOHC 16V (2003)

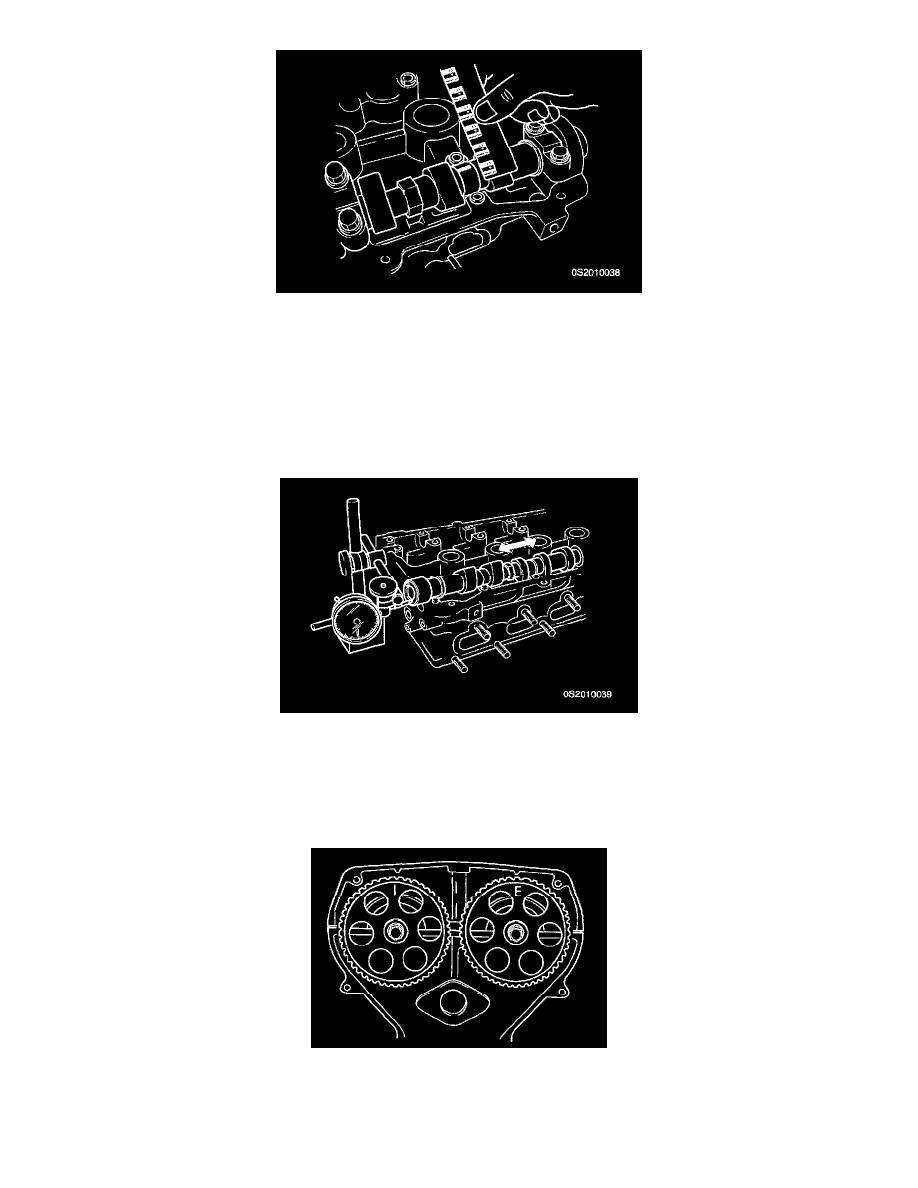

17. Measure oil clearances.
Oil clearance: 0.0014 - 0.0032 inch (0.035 - 0.081 mm)
Maximum: 0.006 inch (0.15 mm)
18. If oil clearance exceeds specification, replace cylinder head.
19. Install camshafts.
20. Place a dial indicator against end of camshaft.
21. Using a prying tool, move camshaft as far forward as possible.
22. Zero dial.
23. Using prying tool, move camshaft as far rearward as possible.
24. Check gauge to determine how much end play is present.
End play: 0.0026 - 0.0054 inch (0.067 - 0.137 mm)
Maximum: 0.0058 inch (0.147 mm)
REASSEMBLY
1. Install the HLA
2. Check that "I" mark on intake camshaft pulley is aligned with mark on cylinder head cover and "E" mark on exhaust camshaft pulley is aligned
with mark on cylinder head cover.
