Cruise Control Switch: Service and Repair

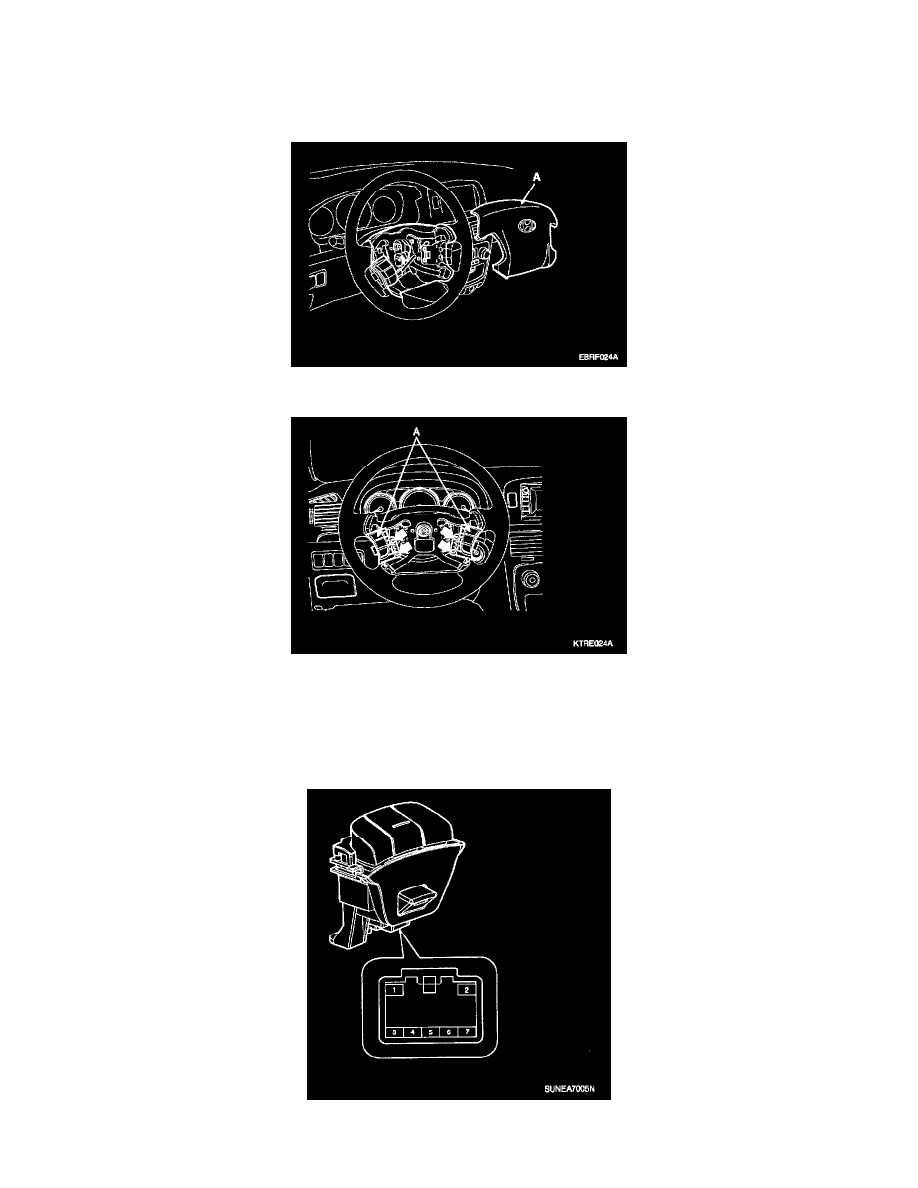

CRUISE CONTROL MAIN SWITCH
REMOVAL
1. Disconnect the battery (-) terminal.
2. Remove the driver side air bag module.
3. Disconnect the cruise control switch connector and then remove the cruise control switch(A) with two screws.
4. Installation is the reverse of removal.
INSPECTION
MEASURING RESISTANCE
1. Disconnect the cruise control switch connector from the control switch.
