Timing Chain: Service and Repair

TIMING CHAIN

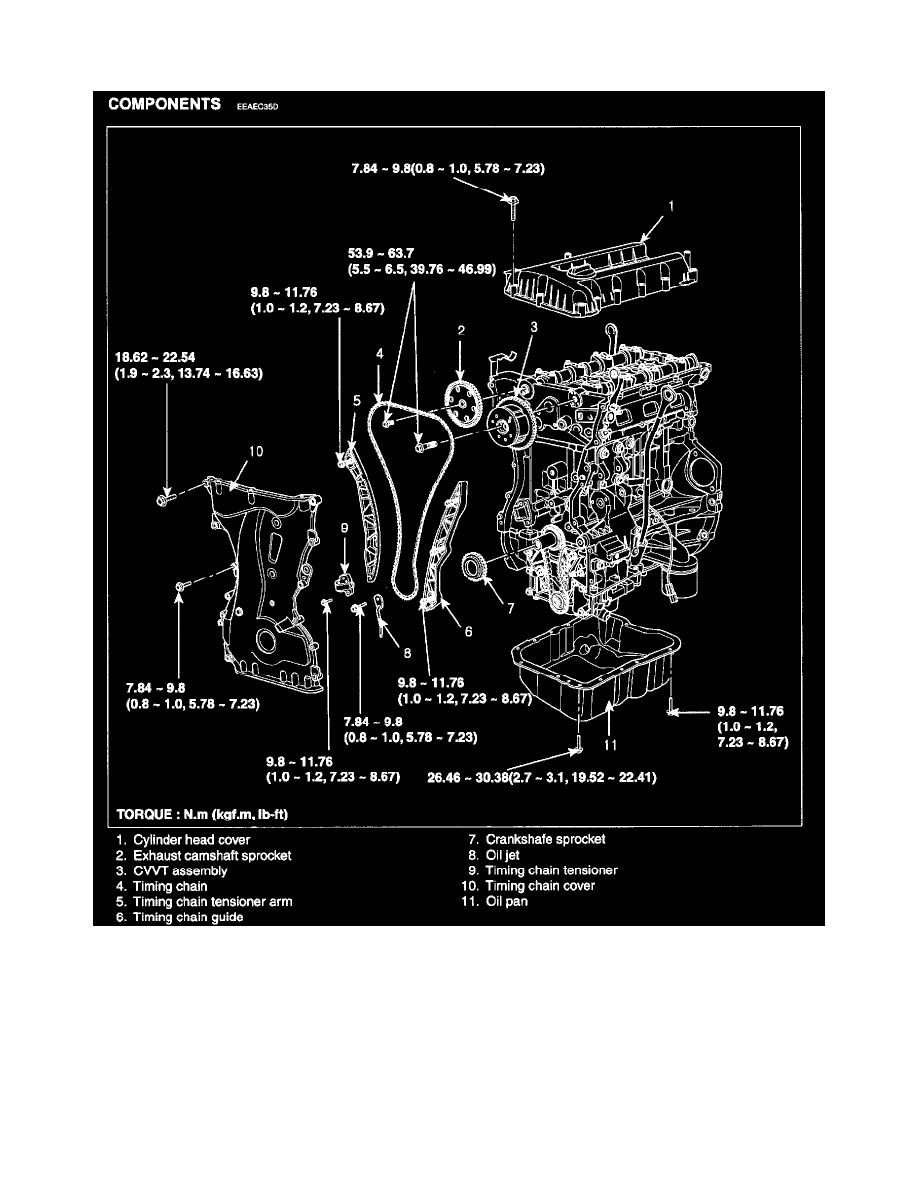

Components (Part 1)

Engine, Cooling and Exhaust
Engine
Timing Components / Timing Chain / Testing and Inspection
