Drive Belt: Adjustments
Adjusting Drive Belt Tension

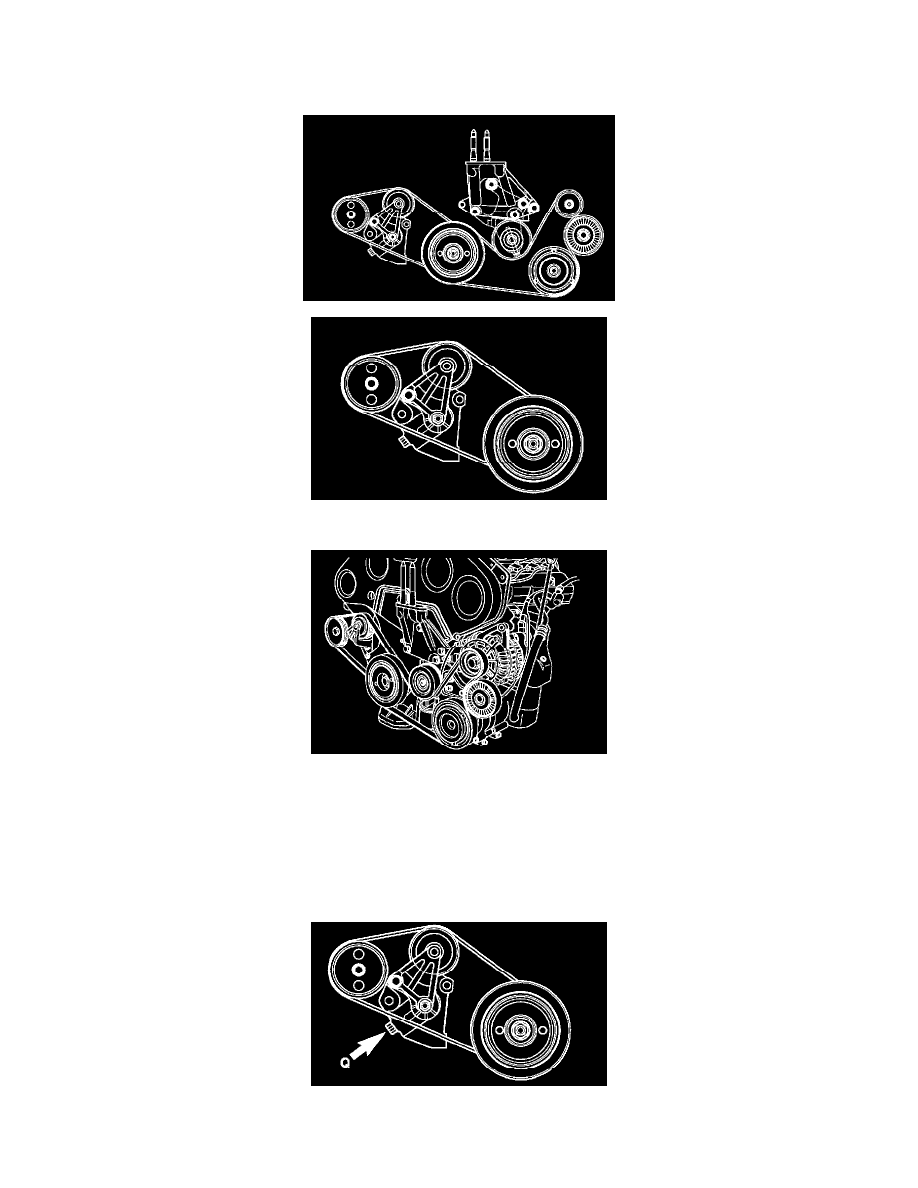

Drive Belt Tension Adjustment
1. Install the power steering belt.
2. Install the drive belt.
3. After installing the belt loosening the adjustment bolt counter clockwise at the "Q" arrow indication, apply tension to the belt by tightening the bolt
clockwise.
NOTE
When adjusting belt tension, adjust it only after tightening the bolt lightly not making tension pulley eccentric.
4. Adjusting drive belt tension.
