Sedona EX V6-3.5L (2002)

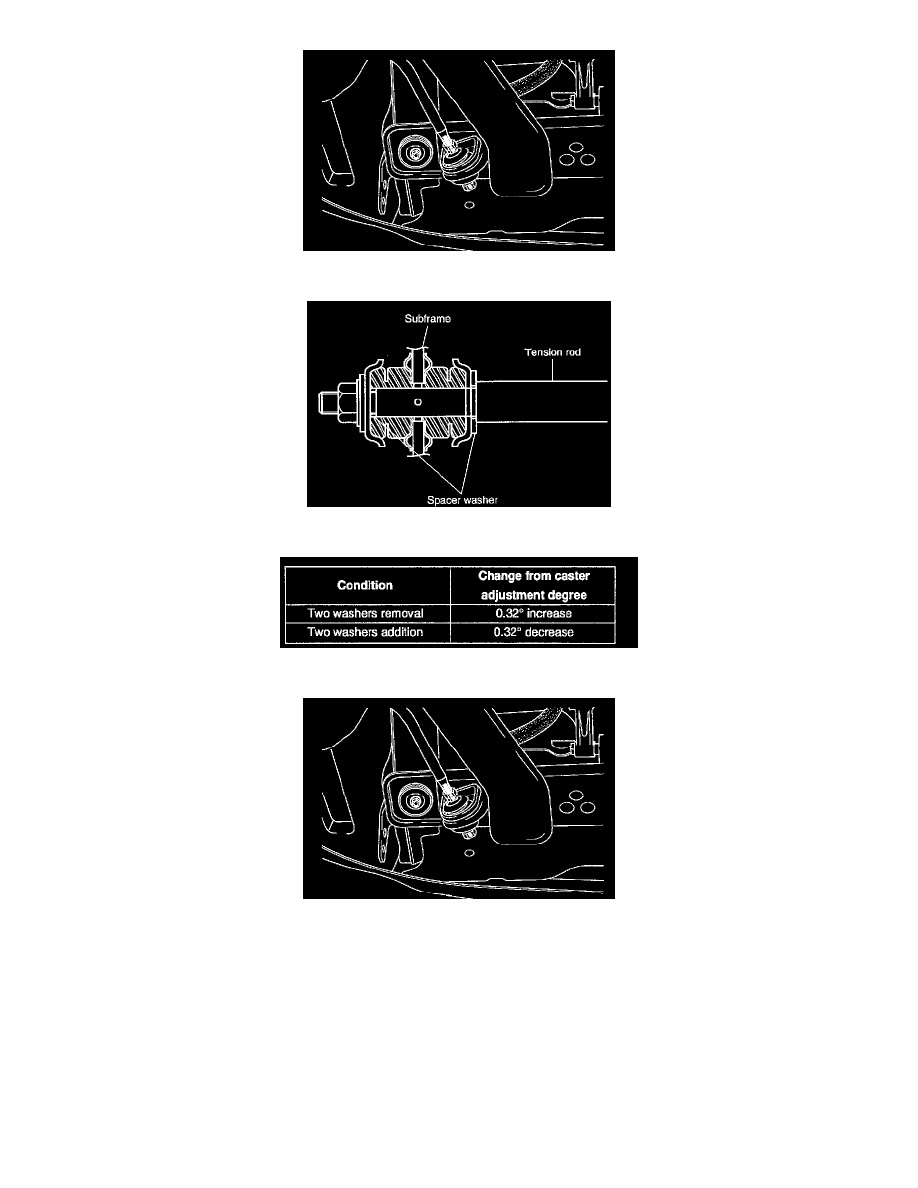

3. Mark alignment of tension rod nuts and spacer washers installed to subframe as shown.
4. If caster degree is smaller than specification, remove two washers which are installed to tension rod inward.
5. If caster degree is larger than specification, add two washers into tension rod to achieve specified degree.
6. Tighten tension rod nuts after aligning with mark made.
Tightening torque: 115 - 130 ft. lbs. (157 - 177 Nm, 16 - 18 kg-m)
7. Lower vehicle.
Recheck caster and readjust if necessary.
Toe (total)
1. Measure toe angle with a toe angle gauge per manufacturer instructions.
