Kia Sedona EX V6-3.5L (2002)08 · Starting and Charging
08 · Electrical

Battery: Specifications (page 5 of 5)

Make
Kia
Model
Sedona EX
Engine
V6-3.5L
Year
2002
Section
Battery
Starting and ChargingSpecifications · page 5 of 5
Battery: Specifications (page 5 of 5) – Kia Sedona EX V6-3.5L (2002)

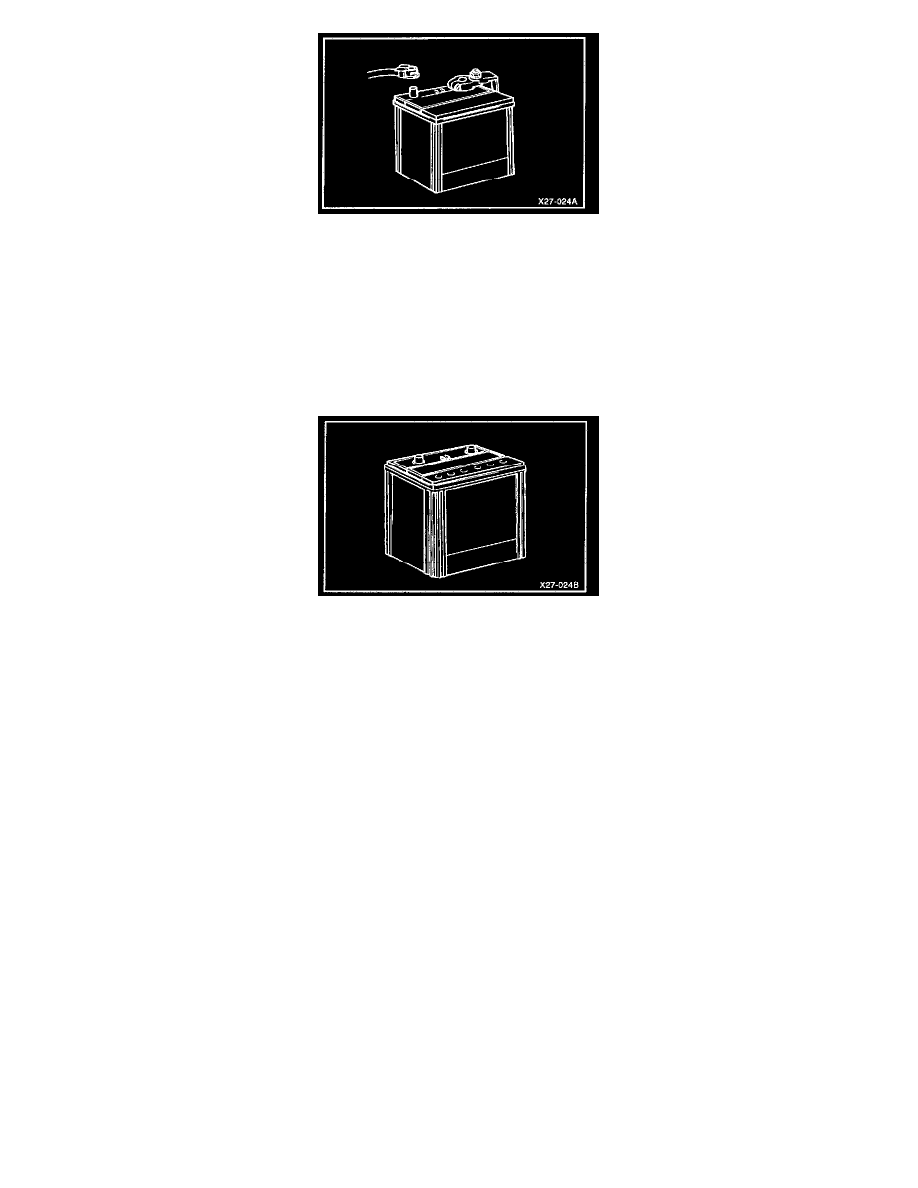

2. Disconnect the battery cables (negative first).
3. Remove the battery from the vehicle.

CAUTION:  Care should be taken in the event the battery case is cracked or leaking, to protect your skin from the electrolyte. A suitable pair of
rubber gloves (not household type) should be worn when removing the battery.

4. Inspect the battery carrier for damage caused by the loss of acid from the battery. If acid damage is present, it will be necessary to clean the area

with a solution of clean warm water and baking soda. Scrub the area with a stiff brush and wipe off with a cloth moistened with baking soda and
water.

5. Clean the top of the battery with the same solution as described in Step (4).

6. Inspect the battery case, and cover, for cracks. If cracks are present, the battery must be replaced.
7. Clean the battery posts with a suitable battery post cleaner.
8. Clean the inside surface of the terminal clamps with a suitable battery terminal cleaning tool. Replace damaged or frayed cables and broken

terminal clamps.

9. Install the battery in the vehicle.

10. Connect the cable terminals to the battery post, making sure the top of the terminal are flush with the top of the post.
11. Tighten the terminal nut securely.
12. Coat all connections with light mineral grease after tightening.

CAUTION:  When batteries are being charged, an explosive gas forms beneath the cover of each cell Do not smoke near batteries being charged
or which have recently been charged. Do not break live circuits at the terminals of the batteries being charged. A spark will occur where the circuit
is broken. Keep all open flames away from the battery.
