Cruise Control Servo: Diagrams (page 2 of 2)
- Make
- Kia
- Model
- Soul
- Engine
- L4-2.0L
- Year
- 2010
- Section
- Cruise Control Servo
Cruise ControlDiagrams · page 2 of 2
Cruise Control Servo: Service and Repair
Removal

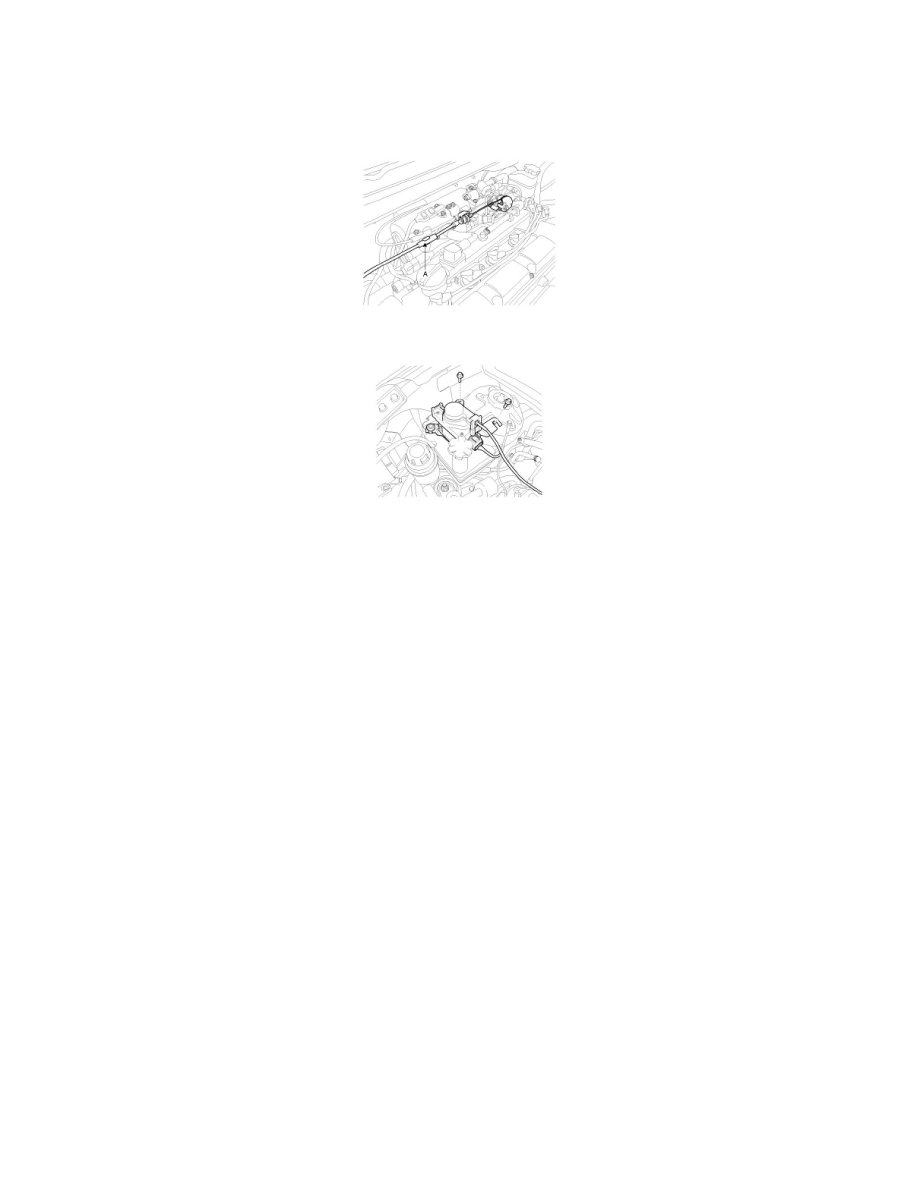

1. Remove the battery negative and the cruise control cable from the throttle assembly by turning the throttle lever to the full-open position.
2. Remove the auto-cruise control cable(A).
3. Remove the actuator and unit assembly (A).
4. Installation is the reverse order of removal.
