Spectra L4-2.0L (2004)
Fluid - M/T: Service and Repair
REPLACEMENT OF TRANSAXLE GEAR OIL
Transaxle gear oil: Hypoid gear oil, SAE 75W/90 (API GL - 4)

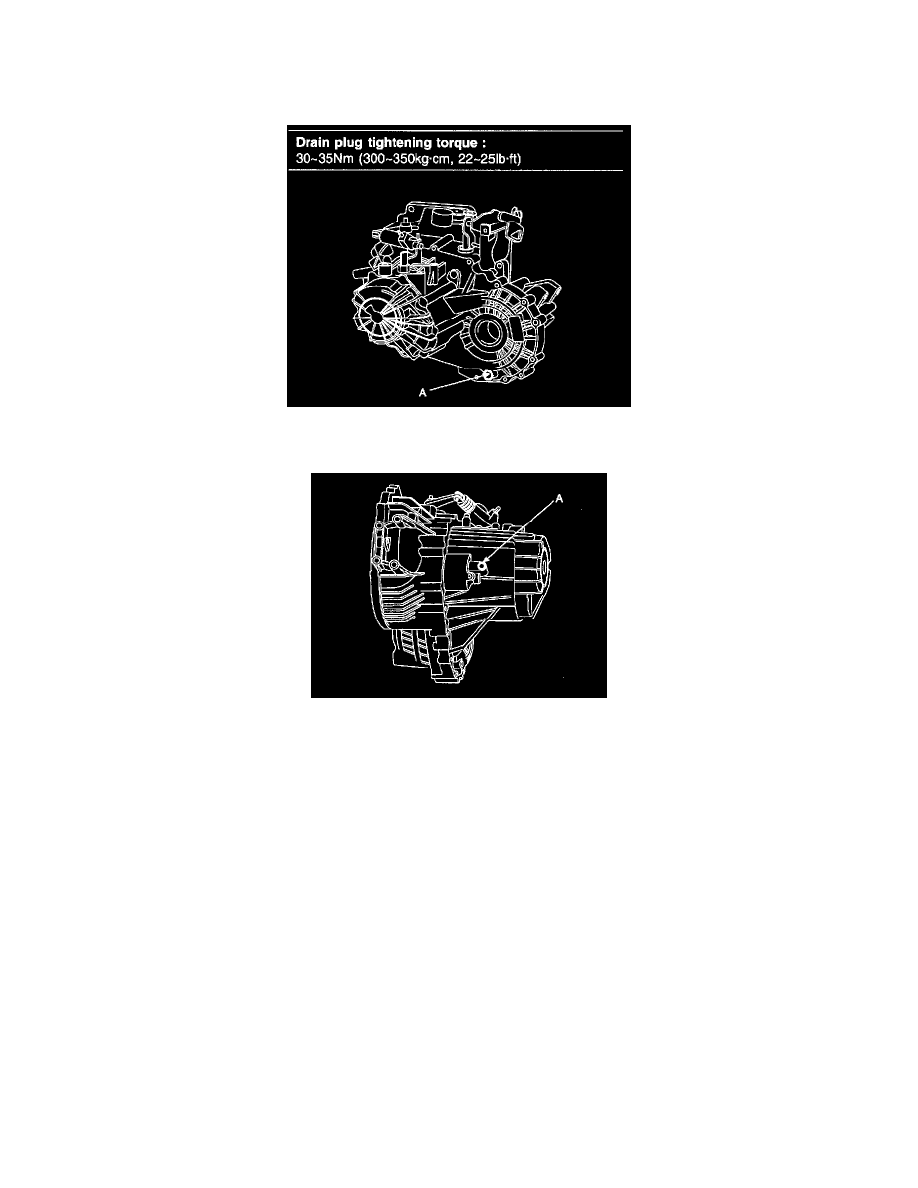

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug(A).
Drain plug tightening torque: 30 - 35Nm (300 - 350kg-cm, 22 - 25 ft. lbs.)
3. Add new oil through the filler plug(A) and, fill it to just below the plug opening.
Transaxle oil total capacity: 2.15 liters (2.25 U.S. quarts, 1.95 Imp. quarts)
Filler plug tightening torque: 30 - 35 Nm (300 - 350 kg-cm, 22 - 25 ft. lbs.)
