Spectra5 L4-2.0L (2005)
Fluid - A/T: Service and Repair
Fluid replacement
General process

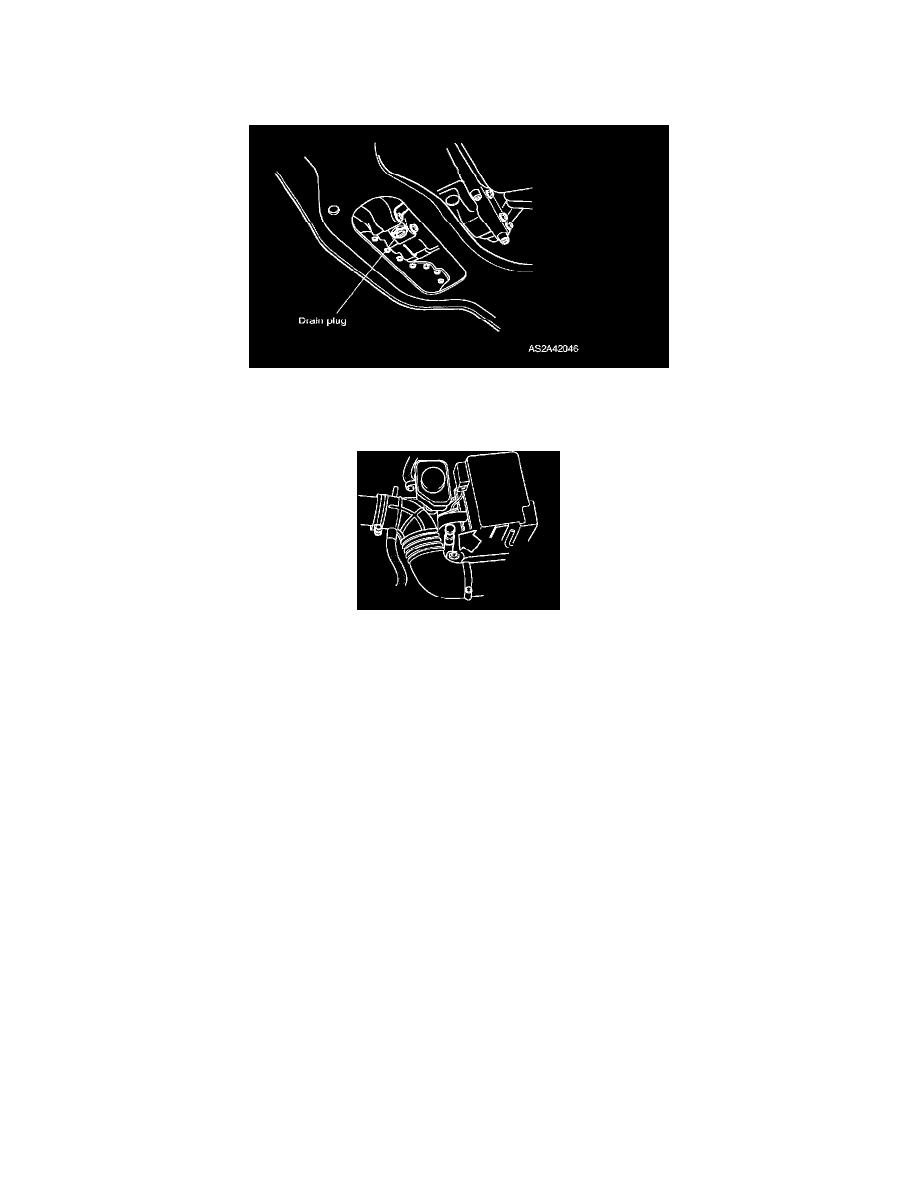

1. Place a drain pan under transaxle drain plug.
2. Remove auto transaxle drain plug and allow automatic transaxle fluid to fully drain.
3. Install drain plug with specified torque.
Tightening torque: 29 - 40 ft. lbs. (39 - 54 Nm, 4.0 - 5.5 kg.m)
Dipstick Location
4. Remove ATF level gauge, then pour specified ATF.
ATF type: SK ATF SP-III
Capacity: 5.7 US quarts (5.4 liter, 4.7 Imp quarts)
Caution: Do not fill above Hot range.
5. Check ATF level.
ATF changer using process
1. Fill ATF changer with specified ATF.
