Kia Spectra5 L4-2.0L (2005)03 · Maintenance
03 · Maintenance

Timing Belt: Specifications (page 18 of 19)

Make
Kia
Model
Spectra5
Engine
L4-2.0L
Year
2005
Section
Timing Belt
MaintenanceSpecifications · page 18 of 19
background image

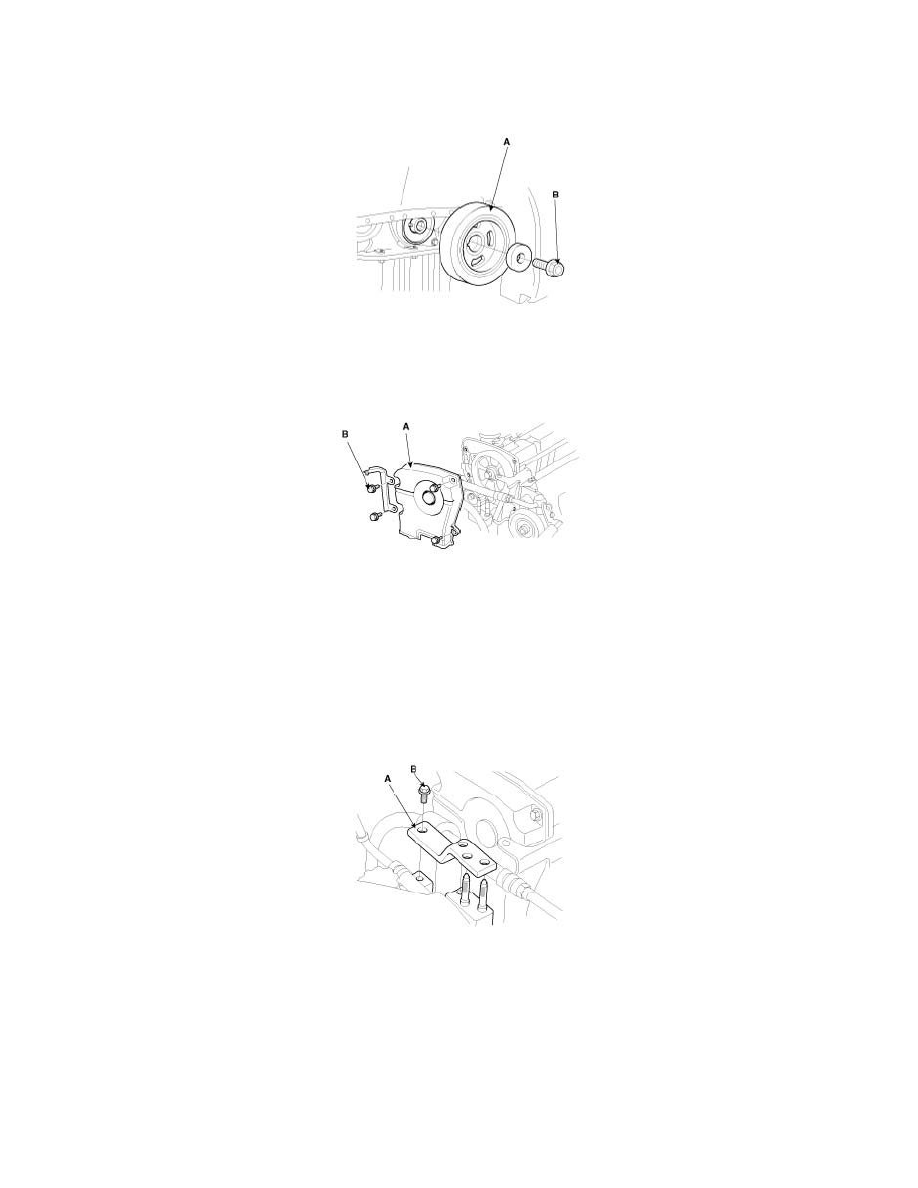

12. Install the flange and crankshaft pulley (A), and then tighten crankshaft pulley bolt (B).

Make sure that the crankshaft sprocket pin fits into the small hole in the pulley.
Tightening torque: 166.7 - 176.5 Nm (17 - 18 kg-m, 123.0 - 130.2 ft. lbs.)

13. Install the timing belt upper cover (A) with 4 bolts (B).

Tightening torque: 7.8 - 9.8 Nm (0.8 - 1.0 kg-m, 5.8 - 7.2 ft. lbs.)

14. Install the water pump pulley and 4 bolts.
15. Install the power steering pump drive belt.
16. Install the air conditioner compressor drive belt.
17. Install the alternator drive belt.
18. Tighten the bolts of water pump pulley.
19. Install the engine mounting support bracket.

1) Install the engine mounting support bracket stay plate (A) with bolt (B).

Tightening torque: 42.2 - 53.9 Nm (4.3 - 5.5 kg-m, 31.1 - 39.8 ft. lbs.)

2) Install the engine mounting support bracket (A) with nuts (C, D) and bolt (B).

Tightening torque:
Nut (D): 68.6 - 93.2 Nm (7.0 - 9.5 kg-m, 50.6 - 68.7 ft. lbs.)
Nut (C) and bolt (B): 49.0 - 63.7 Nm (5.0 - 6.5 kg-m, 36.2 - 47.0 ft. lbs.)
