Sportage 4WD 2Dr L4-2.0L (2002)
ABS Light: Description and Operation

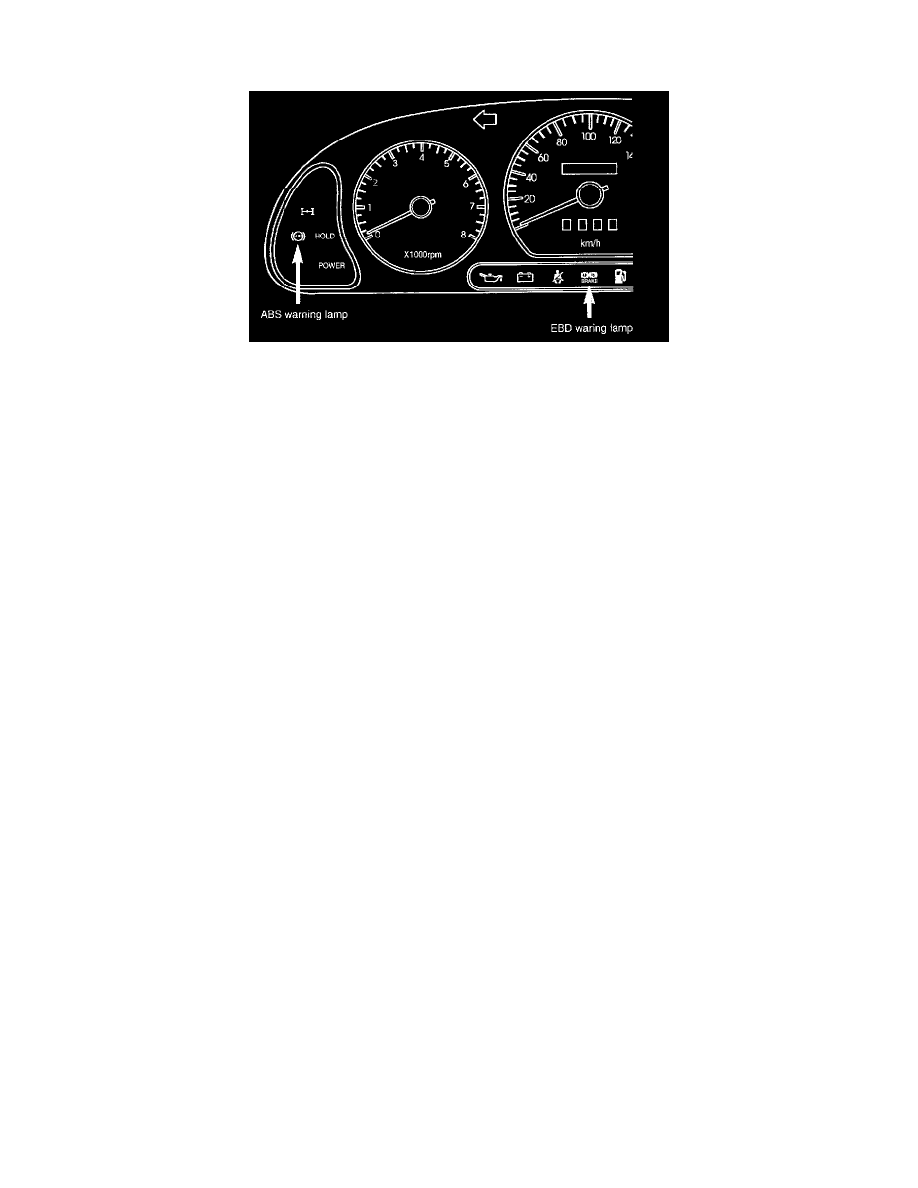

Warning lamp
1. ABS warning lamp
1
It is turned on for three seconds at time of ON of ignition Key and turns off afterwards.
2
It is extinguished at start of operation.
3
It is lighted if system abnormality arise.
4
It is lighted during self-diagnosis.
5
During its lighting, ABS control is interrupted and only ordinary brake operates in same way as ABS-noninstalled vehicle.
6
It is lighted when ECU connector is removed.
2. EBD (electronic brake-force distribution) warning lamp
1
It is lighted at time of ON of ignition Key.
2
It is extinguished at start of operation.
3
It is lighted when perking brake switch is ON.
4
It is lighted when brake oil is deficient.
5
It is lighted when EBD control is infeasible.
-
When there is trouble at solenoid valve.
-
When there is trouble in more than one sensor.
-
When there is trouble in ECU.
-
In case of high voltage.
