Sportage 4WD 4Dr L4-2.0L (2000)
Wheel Speed Sensor: Technical Service Bulletins
Drivetrain/Brakes - 4WD Hubs and ABS Sensor Interference
SOURCE: Kia Technician Times
TITLE: 4 Wheel Drive Hub and ABS Sensor
APPLIES TO: 98- Sportage
SERVICE TIP:
CONDITION
ABS sensor cannot be installed (typically after replacing the knuckles and hubs with the new style per TSB, Campaign 009) due to the fact that the
sensors base plate interferes with the seal cup.
CAUSE

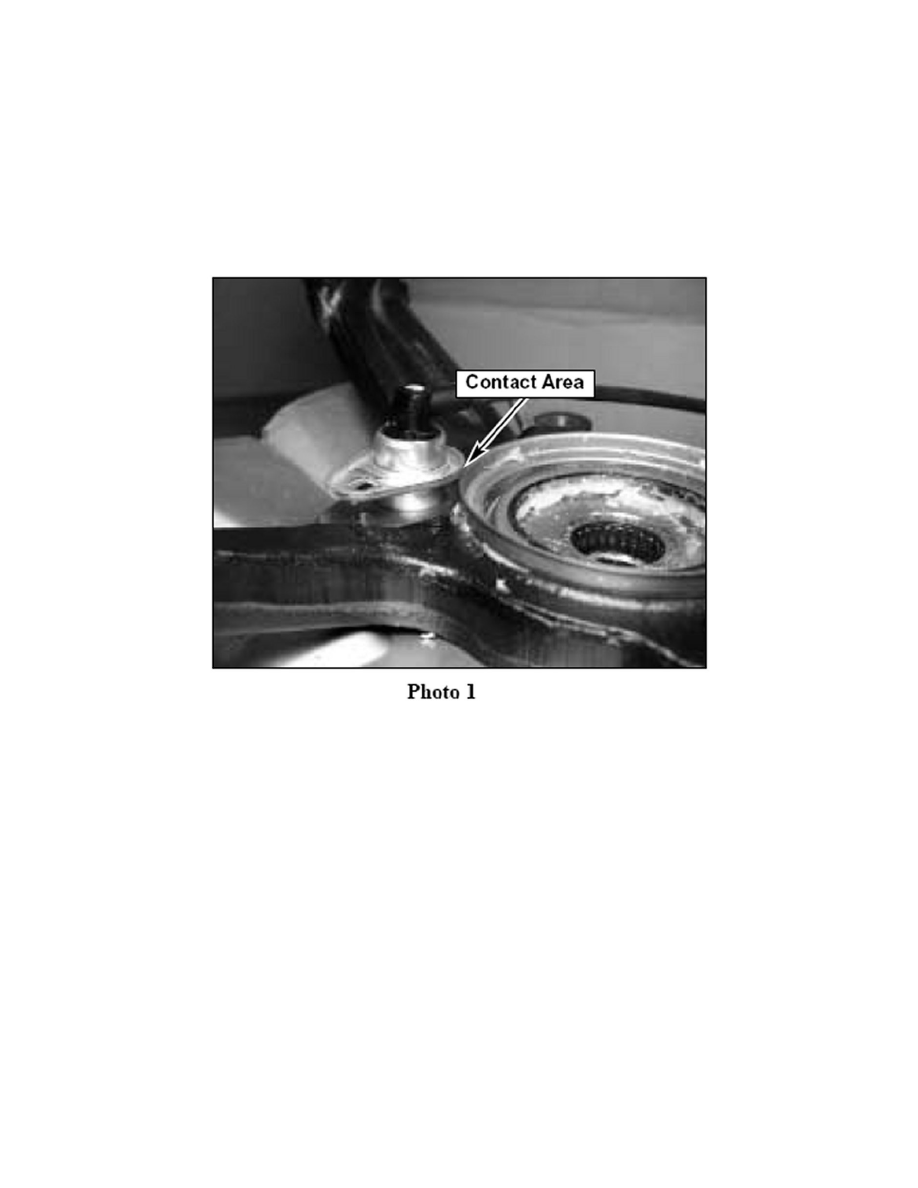

In a few cases, the base plate of the sensor and the cup of the seal might contact one another due to tolerance build up and/or variations in hole
location.
CORRECTIVE ACTION
