REARSCREEN BLIND (ELECTRIC)

SPECIFICATIONS

An (electric) rearscreen blind operated by pressing the button in the centre console and on the rear seat armrest is available on request.

The blind is housed in the rear parcel shelf and amply covers the rear windscreen preventing the rays of the sun from entering the vehicle whilst at the same time it remains possible to see outside from the inside.

COMPOSITION

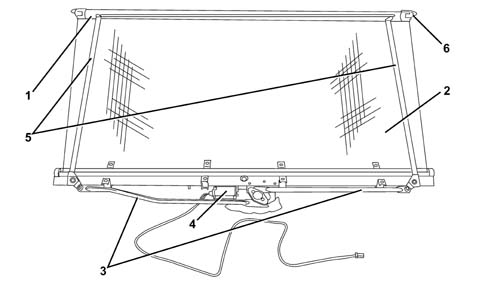

The system comprises an electric movement motor (4) to which the rods (3), that move the levers (5) are connected; the levers slide on guide cams on the trim (1) to which the cloth (2) is secured and the rubber rollers (6) rest againt the rearscreen glass at a predetermined force to prevent noise.

The unwinding/rewinding time is less than around 8 seconds.

• 1 Trim.
• 2 Cloth.
• 3 Rods.
• 4 Electric motor.
• 5 Levers.
• 6 Rubber rollers.

OPERATION

The operation is controlled by an end of travel device (window mechanism type); if the blind is operated it cannot assume intermediate positions: it is either fully raised or fully lowered.

if the blind is raised and lowered at least four times within 25 seconds, then its operation is inhibited for a period of 30 seconds. The last manoeuvre before this inhibition must be completed, the last accepted manoeuvre being the opposite to the starting manoeuvre.
