Front seat head restraint pins - R.R.

Operation 7045B08 · FRONT SEATS HEAD RESTRAINT/ARMREST

Removing

- Disconnect the negative battery terminal.

See in Op. 7045A10 FRONT SEAT (one) left or right - R.R.

See in Op. 7045J10 switch unit for movement of one front seat, l/h or r/h - r+r for check

See in Op. 7045A42 Front seat GUARD (one), left or right - R.R.

- [all the elements]

See in Op. 7045A98 Front seat rear pouch panel, left or right - R.R.

See in Op. 7045B12 Front seat head restraint - R.R. with seat removed

1. Press the retaining tab (1a) and release the head restraint pin (1b) from the housing.

- Carry out the same operation for the remaining pin.

Refitting

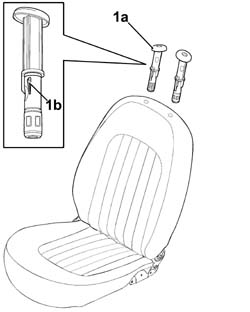

1. Fit the head restraint pin (1a) which has the rear centering device (1b), in the housing on the right seat.

- Fit the other pin.

See in Op. 7045B12 Front seat head restraint - R.R. with seat removed

See in Op. 7045A98 Front seat rear pouch panel, left or right - R.R.

See in Op. 7045A42 Front seat GUARD (one), left or right - R.R.

- [all the elements]

See in Op. 7045J10 switch unit for movement of one front seat, l/h or r/h - r+r for check

See in Op. 7045A10 FRONT SEAT (one) left or right - R.R.

- Connect the negative battery terminal.
