Air/air HEAT EXCHANGER - R.R.

Operation 1048B50 · PRESSURE AIR CIRCUIT

2.4 JTD 20V

Removing

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 4450B12 Front WHEELS (two) - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- (right side)

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- (right side)

See in Op. 7210E10 FRONT BUMPER

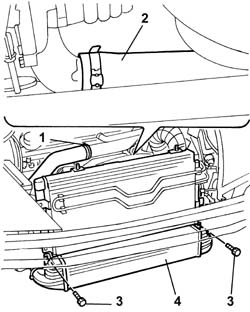

1. Undo the bolts fixing the two heat exchanger air ducts.

2. Disconnect the air supply hose to the rigid pipe from the heat exchanger.

3. Disconnect the turbocharger air supply hose from the heat exchanger.

4. Undo the bolts fixing the heat exchanger to the radiator.

5. Remove the heat exchanger.

Refitting

- Fit the heat exchanger in the special housing and tighten the bolts fixing it to the radiator.

- Connect the air supply hoses to the rigid pipe and the turbochager to the heat exchanger.

- Tighten the bolts fixing the two heat exchanger air ducts.

See in Op. 7210E10 FRONT BUMPER

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- (right side)

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- (right side)

See in Op. 4450B12 Front WHEELS (two) - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

2.0 TB

Removing

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 4450B12 Front WHEELS (two) - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- < R1 > (right side)

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- < R1 > (right side)

See in Op. 7210E10 FRONT BUMPER

1. Disconnect the turbocharger air supply hose from the heat exchanger.

2. Disconnect the air supply hose to the rigid pipe from the heat exchanger.

3. Undo the bolts fixing the heat exchanger to the radiator.

4. Remove the heat exchanger.

Refitting

- Fit the heat exchanger in the special housing and tighten the bolts fixing it to the radiator.

- Connect the air supply hoses to the rigid pipe and the turbochager to the heat exchanger.

See in Op. 7210E10 FRONT BUMPER

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- < R1 > (right side)

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- < R1 > (right side)

See in Op. 4450B12 Front WHEELS (two) - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

2.4 JTD 10V

Removing

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 4450B12 Front WHEELS (two) - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- (right side)

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- (right side)

See in Op. 7210E10 FRONT BUMPER

1. Disconnect the air supply hose to the rigid pipe from the heat exchanger.

2. Disconnect the turbocharger air supply hose from the heat exchanger.

3. Undo the bolts fixing the heat exchanger to the radiator.

4. Remove the heat exchanger.

Refitting

- Fit the heat exchanger in the special housing and tighten the bolts fixing it to the radiator.

- Connect the air supply hoses to the rigid pipe and the turbochager to the heat exchanger.

See in Op. 7210E10 FRONT BUMPER

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- (right side)

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- (right side)

See in Op. 4450B12 Front WHEELS (two) - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 1016A10 SOUND-PROOFING COVER - R.R.

See in Op. 7040D50 ENGINE COMPARTMENT UPPER SOUND INSULATION SHIELD - R.R.
