Lancia Thesis Factory Service Manual (2002-2009)08 · Engine
08 · Engine

Solenoid valve for turbocharger vanes actuator

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Engine supercharging system › Solenoid valve for turbocharger vanes actuator
EngineSolenoid valve for turbocharger vanes actuator

Solenoid valve for turbocharger vanes actuator

Operation 1064A28 · TURBOCHARGER ASSEMBLY

2.4 JTD 10V

Removing

See in Op. 1016A10

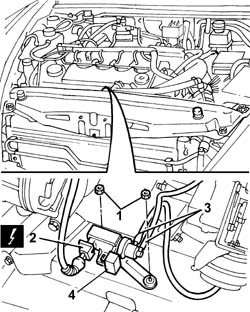

1. Undo the nuts fixing the actuator to the crossmember.

2. Disconnect the electrical connection for the vane actuator solenoid valve.

DescriptionConnector
2Turbocharger vane solenoid valveL036

3. Disconnect the flexible vacuum pipes from the solenoid valve.

4. Remove the solenoid valve for the turbocharger vanes actuator.

Solenoid valve for turbocharger vanes actuator

Refitting

- Fit the solenoid valve for the turbocharger vanes actuator.

- Connect the flexible vacuum pipes to the solenoid valve.

- Connect the electrical connection for the vane actuator solenoid valve.

DescriptionConnector
Turbocharger vane solenoid valveL036

- Tighten the nuts fixing the actuator to the crossmember.

See in Op. 1016A10

2.4 JTD 20V

Removing

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

1. Undo the nuts fixing the actuator to the crossmember.

2. Disconnect the electrical connection for the vane actuator solenoid valve.

DescriptionConnector
2Waste gate solenoid valveL037

3. Disconnect the flexible vacuum pipes from the solenoid valve.

4. Remove the solenoid valve for the turbocharger vanes actuator.

Solenoid valve for turbocharger vanes actuator

Refitting

- Fit the solenoid valve for the turbocharger vanes actuator.

- Connect the flexible vacuum pipes to the solenoid valve.

- Connect the electrical connection for the vane actuator solenoid valve.

DescriptionConnector
Waste gate solenoid valveL037

- Tighten the nuts fixing the actuator to the crossmember.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.
