DESCRIPTION OF COMPONENTS

2.4 JTD 10V

FUEL FILTER

Specifications

Type

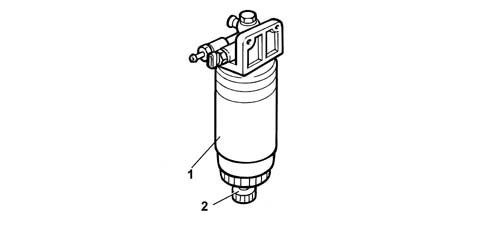

The fuel filter is fitted in the engine bay on the bulkhead.

It is cartridge type with a filter element (1) consisting of a paper disc pack with a filtering area of 5300 cm² and a filtering level of 4 - 5 microns.

Plug (2) fitted at the base of the cartridge allows water to drain from the filter.

FUEL HEATING DEVICE

Specifications

Type

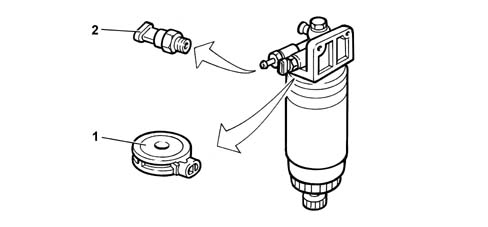

The fuel filter is equipped with a fuel preheating device (1) controlled by the control unit and a fuel pressure sensor. When diesel fuel temperature is lower than 6 °C, an electrical coil heats the fuel to a maximum of 15 °C before directing it to the pressure pump.

2.4 JTD 20V

FUEL FILTER

Specifications

Type

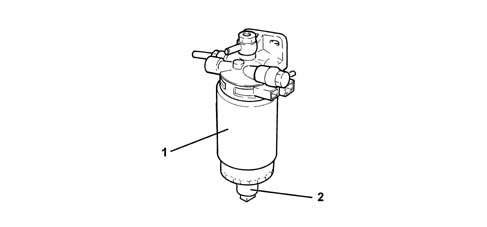

The fuel filter is fitted in the engine bay on the bulkhead.

It is cartridge type with a filter element (1) consisting of a paper disc pack with a filtering area of 5300 cm² and a filtering level of 4 - 5 microns.

Plug (2) fitted at the base of the cartridge allows water to drain from the filter.

FUEL HEATING DEVICE

Specifications

Type

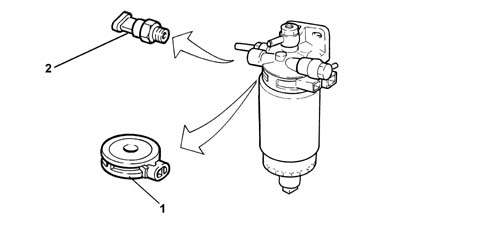

The fuel filter is equipped with a fuel pre-heating device (1) operated by the control unit and a fuel temperature sensor (2). When the temperature of the fuel is below 6ºC, an electrical resistance heats it up to a maximum of 15 ºC before sending it to the pressure pump.
