Front seat lift device - r r

Operation 7045A60 · Front seat assembly

Removing

- 7045A13 front seat with side bag r r

Check the seat is in fully raised position.

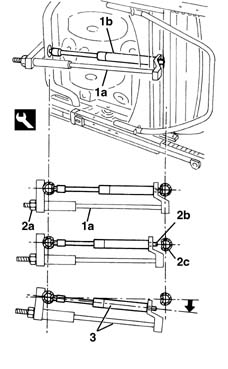

1. Fit tool (1a) to the gas spring (1b) as shown in the figure.

2. Tighten up tool nut (2a) (to compress the gas spring) until gas spring pin (2b) disengages from the seat (2c) in the tube.

Hold the tool in the correct position while tightening the nut.

CARRY OUT THE OPERATION WITH THE GREATEST CAUTION

3. Turn the tool and gas spring assembly as far as strictly necessary, then unscrew the tool nut until the gas spring withdraws fully.

keep the tool in the correct position whilst loosening the nut.

Refitting

Check that the gas spring device is undamaged and load as necessary.

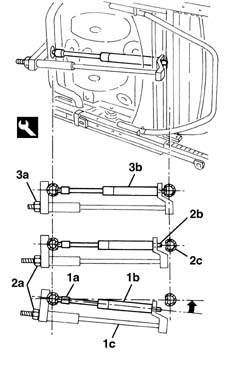

1. Rest head (1a) of gas spring (1b) in its seat on the tube, then fit tool (1c) as shown in the figure.

2. Tighten up tool nut (2a) (to compress the gas spring) until gas spring pin (2b) disengages from the seat (2c) in the tube.

Hold the tool in the correct position while tightening the nut.

CARRY OUT THE OPERATION WITH THE GREATEST CAUTION

3. Undo tool nut (3a) until gas spring device (3b) is fully engaged in the seat.

Keep the tool in the correct position whilst loosening the nut.

- 7045A13 front seat with side bag r r

Test the device is working properly.
