SteeringRack and pinion steering box

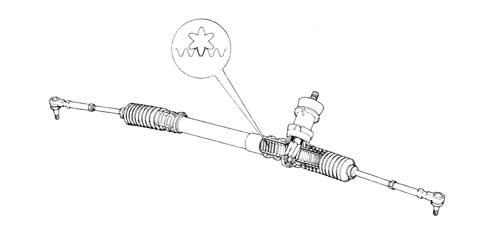

Rack and pinion steering box
SPECIFCATIONS
Specifications:
- splitter ratio equal to 51 mm/fixed revolution
- steering wheel/wheel angle ratio equal to 14°/1°
- steering wheel revolutions: ~ 2.6 for a rack travel of 135 mm
- turning circle: ~ 9.9 m
Diagram showing effort with constant ratio steering box:
Constant ratio steering box

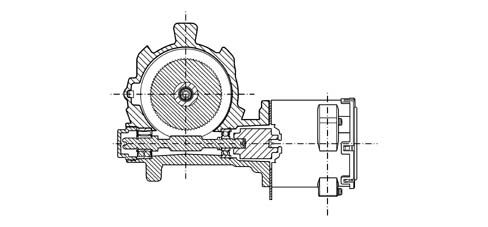

Cross sections through steering box.
The following figure shows a cross section through the constant ratio steering box and illustrates the rack and pinion teeth schematically.
