REVERSING LIGHTS - Wiring diagram
- Make
- Lancia
- Model
- Ypsilon Factory Service Manual
- Year
- 2003–2011
- Section
- Interior lighting › REVERSING LIGHTS - Wiring diagram
Wiring diagrams and electrical functionsREVERSING LIGHTS - Wiring diagram

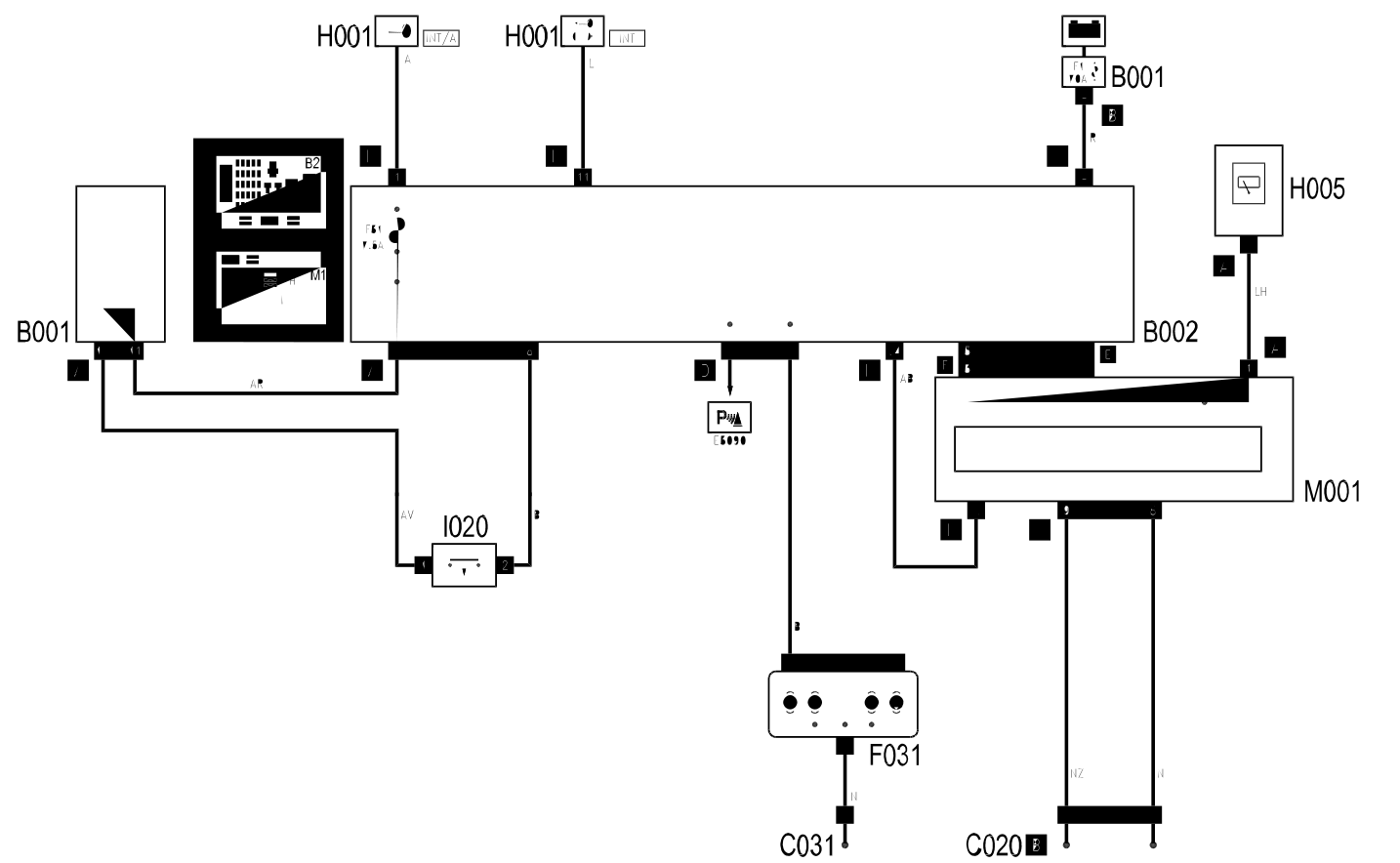

REVERSING LIGHTS - Wiring diagram
Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| C20 | Passenger side dashboard earth | |
| C31 | Rear right earth | |
| F31 | Rear right light cluster | 5540A |
| H1 | Ignition switch | 5520A |
| H5 | Steering column switch unit | 5550A |
| I20 | Reversing lights switch | 5550D |
| M1 | Body computer | 5505A |
