Borg Warner Transfer Box: Gearbox Component Overview
TRANSFER BOX
DESCRIPTION AND OPERATION
3

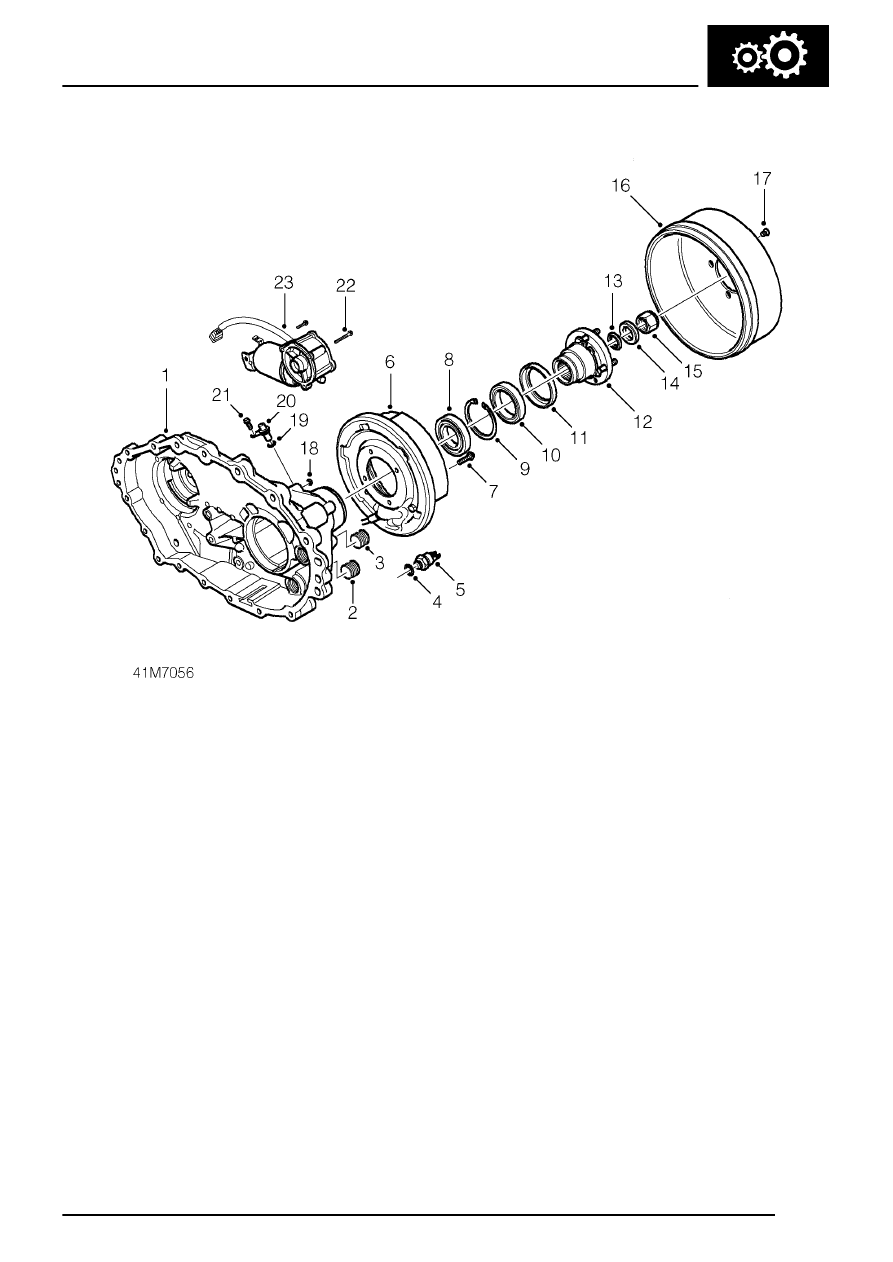

1. Rear casing - transfer box
2. Plug - oil drain
3. Plug - oil fill
4. Sealing washer - temperature sensor
5. Temperature sensor
6. Parking brake assembly
7. Bolt - parking brake to rear casing
8. Bearing - rear output shaft
9. Circlip - bearing retention
10. Oil seal - rear output shaft
11. Dust shroud
12. Drive flange - rear output shaft
13. Sealing washer
14. Plain washer
15. Nut - drive flange
16. Drum - parking brake
17. Screw - drum to flange
18. Oil seal - interlock spool shaft
19. ’O’ ring seal - speed sensor
20. Speed sensor
21. Bolt - speed sensor
22. Bolt - ratio control motor to rear casing
23. Ratio control motor
