Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section

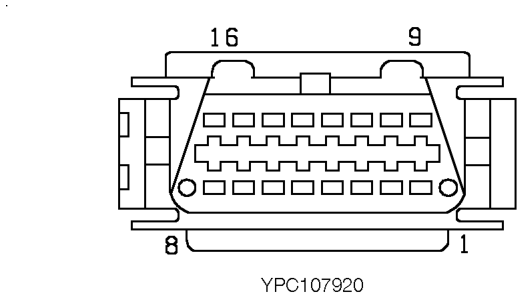

- C0040 Diagnostic socket › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 4 | Col B | Cct ALL |
| 5 | B | ALL |
| 7 | K | 4 |
| 8 | OLG | ALL |
| 16 | PN | ALL |

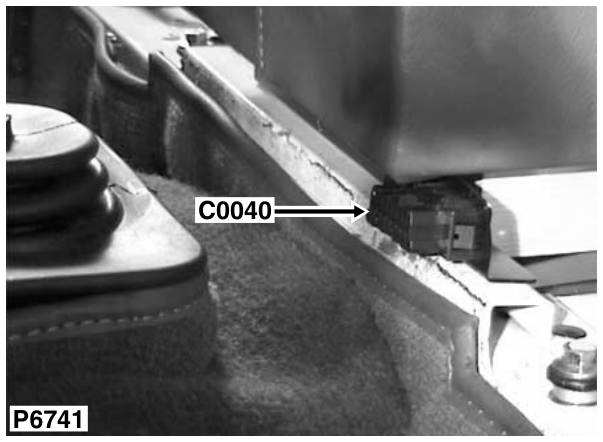

Description: Diagnostic socket Location: Behind front of centre console
Colour: BLACK Gender: Female
