Description: ECU - Alarm
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0061 ECU - Alarm › Description: ECU - Alarm

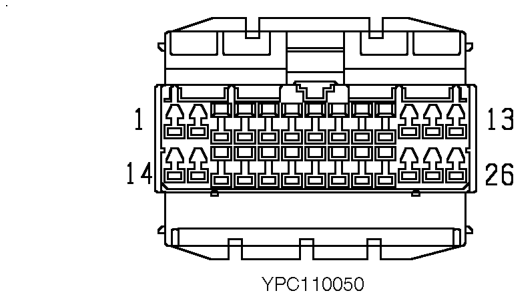

ConnectorsDescription: ECU - Alarm
| Cav 1 | Col PW | Cct 21 |
| 3 | WB | 21 |
| 5 | SW | 21 |
| 7 | YK | 21 |
| 9 | OU | 21 |
| 10 | WG | 21 |
| 14 | LGS | ALL |
| 16 | PU | 21 |
| 17 | OLG | 21 |
| 20 | BN | 21 |
| 25 | PN | 21 |
| 26 | OS | 21 |
Description: ECU - Alarm

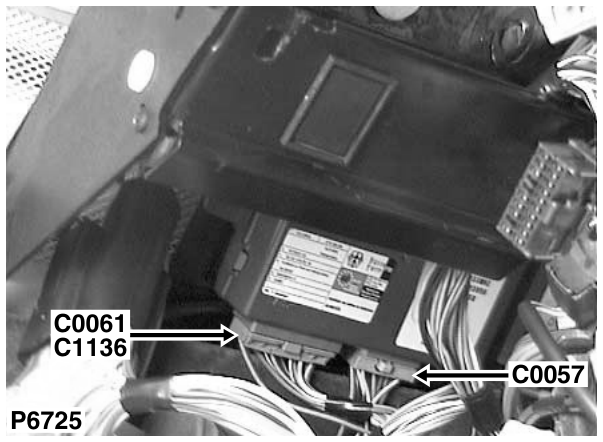

Location: Behind instrument pack
Colour: GREY Gender: Female
