Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0096 Switch - Hazard warning › Colour: NATURAL Gender: Female

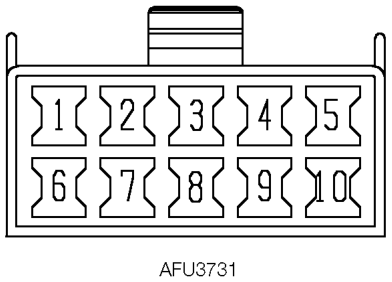

ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col WG | Cct ALL |
| 2 | PN | ALL |
| 3 | LG | ALL |
| 4 | RO | ALL |
| 5 | B | ALL |
| 6 | LGN | ALL |
| 7 | GR | ALL |
| 8 | BR | ALL |
| 9 | GW | ALL |

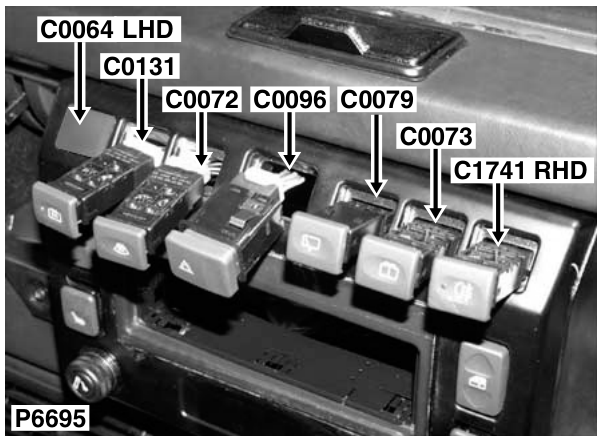

Description: Switch - Hazard warning Location: Fascia - top centre
Colour: NATURAL Gender: Female
