Description: Relay - Blower
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0153 Relay - Blower › Description: Relay - Blower
ConnectorsDescription: Relay - Blower
| Cav 1 | Col N | Cct ALL |
| 2 | UB | ALL |
| 3 | WG | ALL |
| 4 | UW | ALL |
Description: Relay - Blower

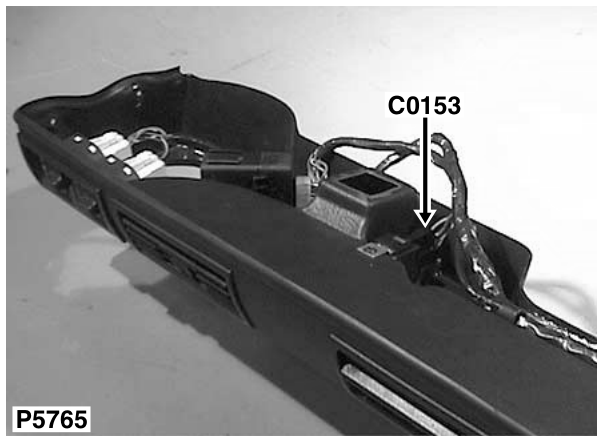

Location: Behind LH side of fascia
NO CONNECTOR FACE
Colour: BLACK Gender: Female
