Colour: GREY Gender: Male
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0162 Engine harness to main harness › Colour: GREY Gender: Male

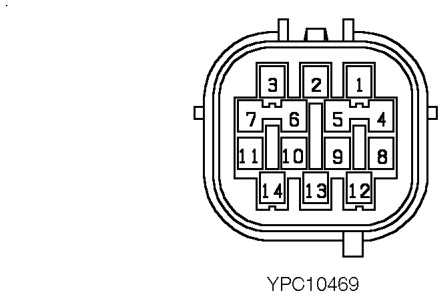

ConnectorsColour: GREY Gender: Male
| Cav 1 | Col WN | Cct ALL |
| 2 | NY | ALL |
| 3 | BU | ALL |
| 4 | GN | ALL |
| 5 | GY | ALL |
| 6 | B | ALL |
| 7 | SR | ALL |
| 8 | BS | 25 |
| 9 | BP | 25 |
| 10 | BR | ALL |
| 11 | BY | ALL |
| 12 | B | ALL |
| 12 | WG | ALL |
| 13 | WG | 7 |
| 13 | B | ALL |
| 14 | GU | ALL |

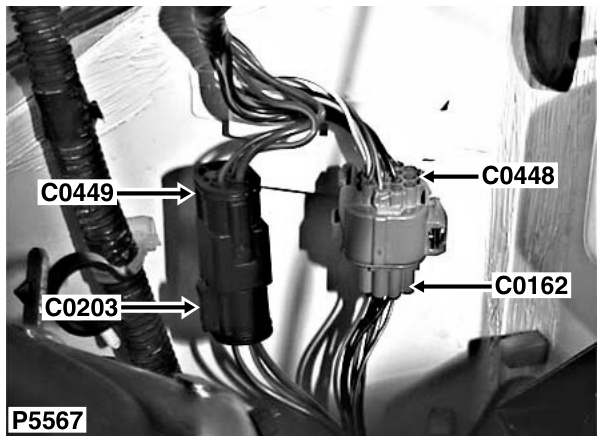

Description: Engine harness to main harness Location: Lower RH rear of engine compartment
Colour: GREY Gender: Male
