Colour: GREEN Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0249 Switch - Heater - Seat - RH › Colour: GREEN Gender: Female
ConnectorsColour: GREEN Gender: Female
| Cav 1 | Col LGW | Cct 26 |
| 2 | RO | 26 |
| 4 | UK | 26 |
| 5 | B | 26 |

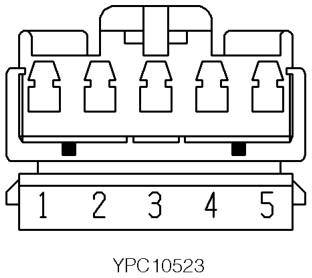

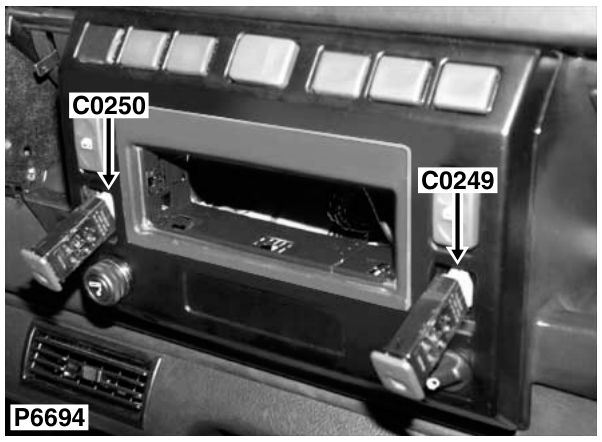

Description: Switch - Heater - Seat - RH Location: Behind centre of fascia
Colour: GREEN Gender: Female
