Description: Throttle - EGR - Inlet
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0272 Throttle - EGR - Inlet › Description: Throttle - EGR - Inlet
ConnectorsDescription: Throttle - EGR - Inlet
| Cav 1 | Col NO | Cct 46 |
| 1 | RB | 46 |
| 2 | KB | 46 |
| 2 | O | 46 |
| 3 | RU | 46 |

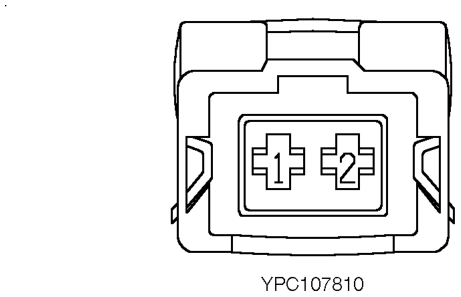

Description: Throttle - EGR - Inlet

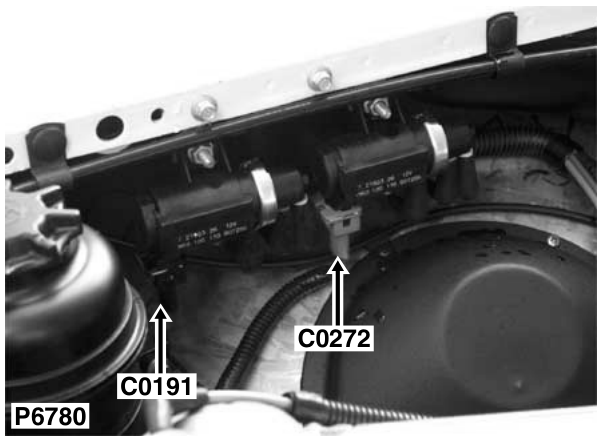

Location: RH side of engine compartment
Colour: GREEN Gender: Female
