Workshop Manuals Factory service & repair Land Rover
01 Introduction02 Fuse details03 Earth points and headers04 Description and operation05 Connectors
Land Rover Defender Electrical Library (2002 on)05 · Connectors
05 · General

Description: Lamp - Interior - Front

Make
Land Rover
Model
Defender Electrical Library
Year
2002 on
Section
C0355 Lamp - Interior - Front › Description: Lamp - Interior - Front
ConnectorsDescription: Lamp - Interior - Front
Cav
1
Col
PW
Cct
ALL
3PNALL

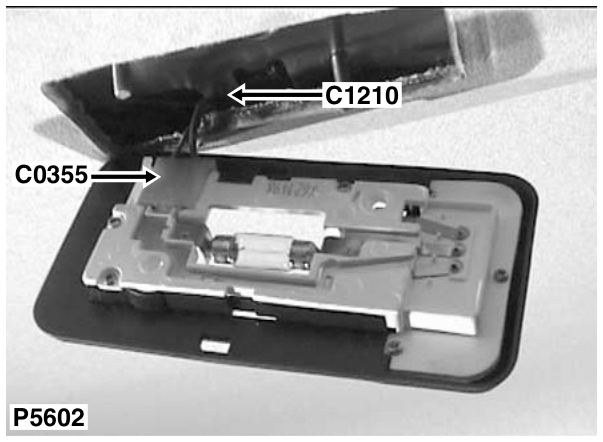

Diagram

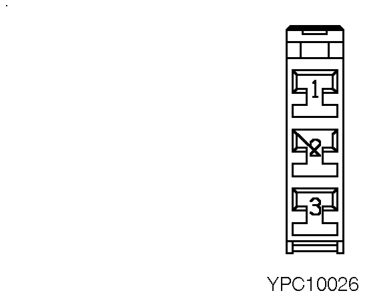

Description: Lamp - Interior - Front

Location: Front of headlining in the centre

Description: lamp - interior - front – Location: Front of headlining in the centre

Colour: NATURAL Gender: Female
