Description: Lamp - Tail - RH
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0489 Lamp - Tail - RH › Description: Lamp - Tail - RH

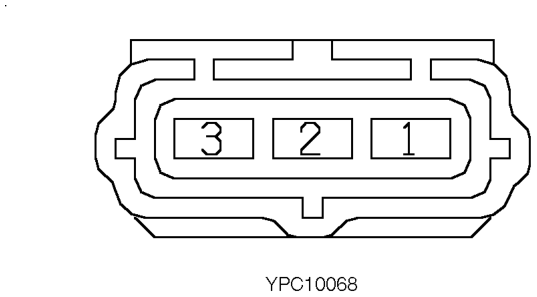

ConnectorsDescription: Lamp - Tail - RH
| Cav 1 | Col B | Cct ALL |
| 2 | GP | 16 |
| 3 | RO | 16 |
Description: Lamp - Tail - RH

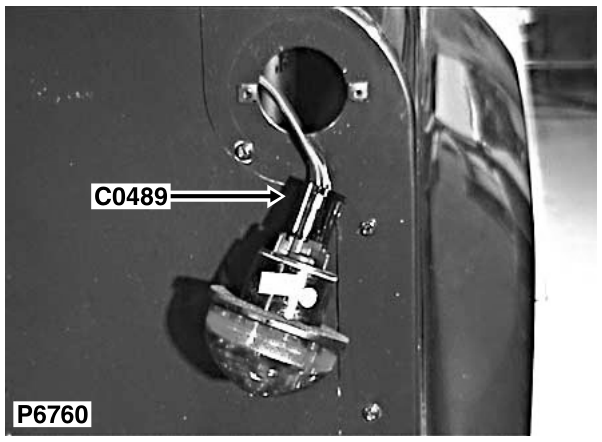

Location: RH rear of vehicle
Colour: BLACK Gender: Female
