Description: Modulator - ABS
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0501 Modulator - ABS › Description: Modulator - ABS

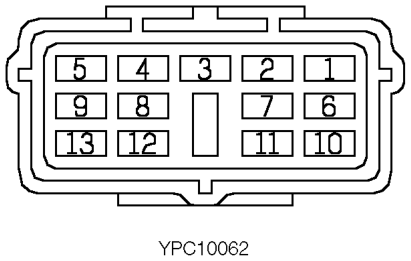

ConnectorsDescription: Modulator - ABS
| Cav 1 | Col SW | Cct 6 |
| 2 | SR | 6 |
| 4 | SK | 6 |
| 5 | SP | 6 |
| 8 | B | 6 |
| 9 | RB | 6 |
| 10 | SG | 6 |
| 11 | SU | 6 |
| 12 | SN | 6 |
| 13 | SY | 6 |
Description: Modulator - ABS

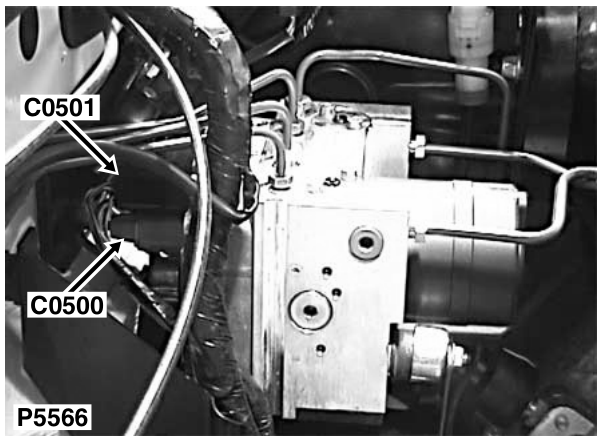

Location: Behind ABS modulator
Colour: BLACK Gender: Female
