Description: ECU - ABS
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0504 ECU - ABS › Description: ECU - ABS

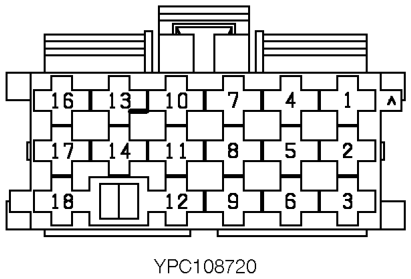

ConnectorsDescription: ECU - ABS
| Cav 1 | Col NW | Cct 4 |
| 2 | GO | 4 |
| 5 | K | 4 |
| 8 | NR | ALL |
| 9 | BW | 4 |
| 10 | SP | 4 |
| 11 | YK | 4 |
| 12 | B | 4 |
| 17 | YS | ALL |
| 18 | RS | ALL |
Description: ECU - ABS

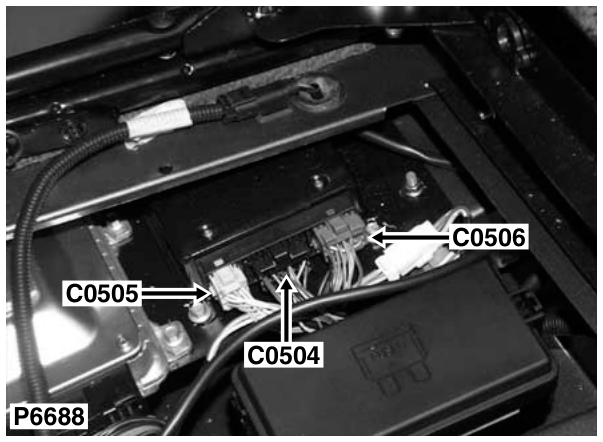

Location: Beneath RH seat
Colour: BLACK Gender: Female
