Description: ECU - ABS
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0506 ECU - ABS › Description: ECU - ABS

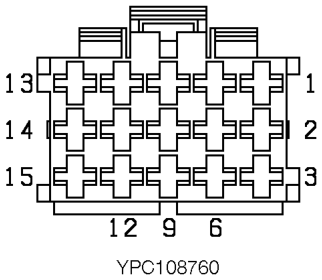

ConnectorsDescription: ECU - ABS
| Cav 1 | Col SW | Cct ALL |
| 2 | SR | ALL |
| 3 | B | ALL |
| 4 | SG | ALL |
| 5 | SU | ALL |
| 6 | RB | ALL |
| 7 | SY | ALL |
| 8 | SN | ALL |
| 10 | SP | ALL |
| 11 | SK | ALL |
| 15 | WO | 4 |
Description: ECU - ABS

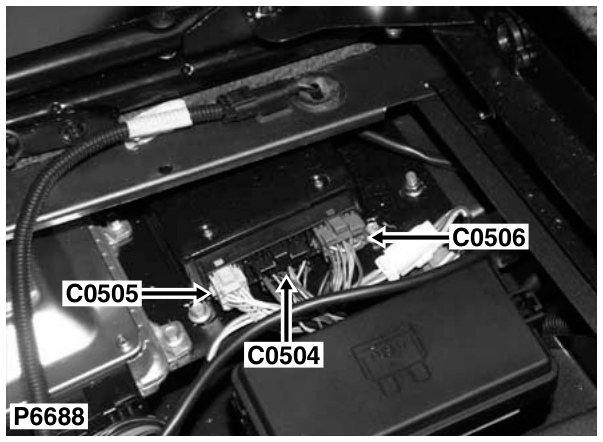

Location: Beneath RH seat
Colour: PURPLE Gender: Female
