Description: Header - Earth
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0550 Header - Earth › Description: Header - Earth

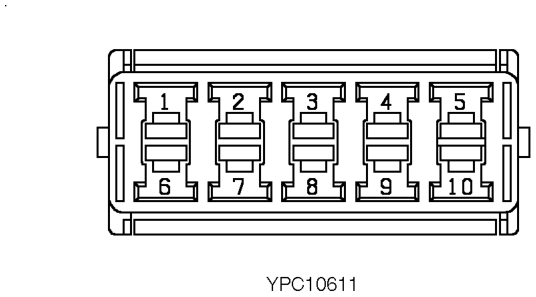

ConnectorsDescription: Header - Earth
| Cav 1 | Col B | Cct ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | B | ALL |
| 10 | B | 25 |
Description: Header - Earth

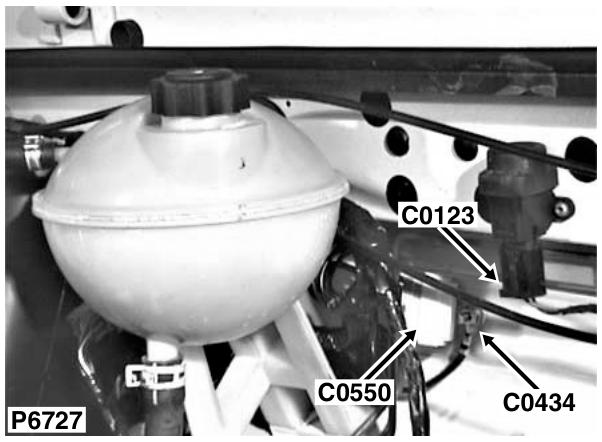

Location: Top of bulkhead - centre
Colour: LIGHT GREY Gender: Female
