Colour: BLACK Gender: Female

Make

Land Rover

Model

Defender Electrical Library

Year

2002 on

Section

C0581 Fuse box - Passenger compartment › Colour: BLACK Gender: Female

ConnectorsColour: BLACK Gender: Female

Cav 1	Col R	Cct ALL
2	RO	ALL
4	RB	ALL
6	RO	ALL
7	W	ALL
8	WG	ALL
9	UR	ALL
10	UB	ALL
12	UK	ALL
13	UW	ALL
14	UO	ALL
16	US	ALL
17	U	ALL
18	UP	ALL
19	PB	19
20	OR	19

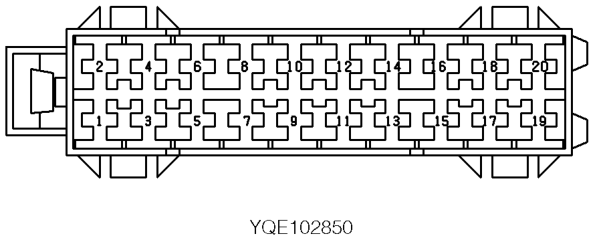

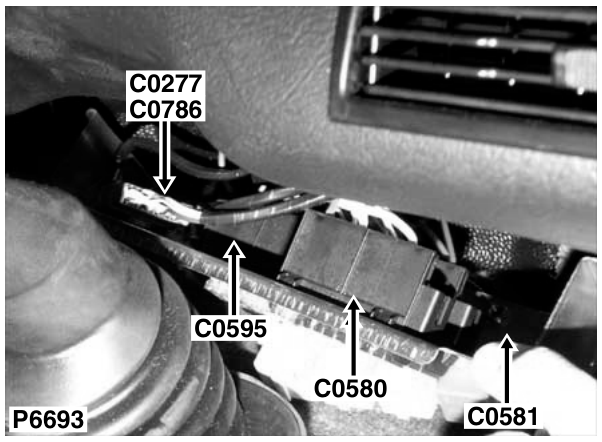

Description: Fuse box - Passenger compartment Location: Behind centre of fascia

Colour: BLACK Gender: Female

05 General
